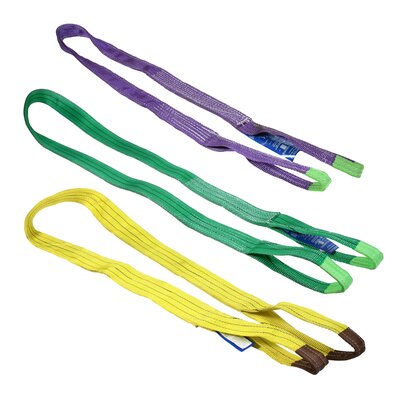

Double layer Duplex webbing slings 0,5 - 35 t. Folded reinforced eyes as standard and also available with flat eye.
Note! Standard dimensional tolerance is ± 3%. Lengths can vary within the tolerance range!
Thanks to our own production unit, we can also make quick deliveries of special types and lengths as well as lifting slings with higher WLL UP TO 35t.
- Features: RFID-ready
- Material: 100% polyester
- Marking: According to standard, CE-marked
- Temperature range: -40°C - +100 °C
- Standard: EN 1492-1
- Note: Color coded
- Safety factor: 7:1
Webbing sling polyester
EN 1492-1
Safety Factor 7:1 | Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |  |  |  | |||
| 0°−45° | 45°−60° | |||||
| Width | Working load limit (WLL) in tons | |||||
| 50 mm | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| 60 mm | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| 90 mm | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| 120 mm | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| 150 mm | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| 180 mm | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| 240 mm | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| 300 mm | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| 300 mm | 12,0 | 24,0 | 9,6 | 16,8 | 12,0 | |
| 240 mm | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| 300 mm | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
