Haklift
  • Not for lifting

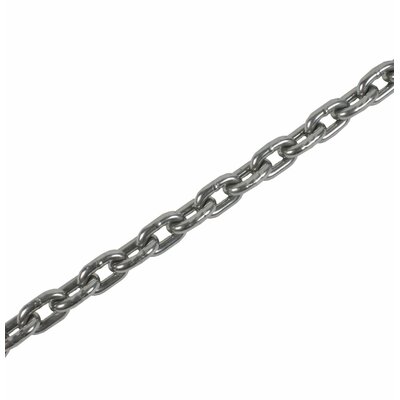

Stainless steel short link chains packed in a bundle



  • Material: AISI 316
  • Finish: Polished
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button

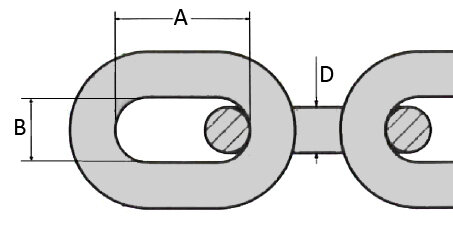

Part Code Chain diameter
mm
Approx breaking load
t
A
mm
B
mm
Weight
kg/m
KEHA3LH 3 0,28 16 6 0,17
KEHA4LH 4 0,6 16 6 0,32
KEHA5LH 5 1 18,5 7 0,5
KEHA6LH 6 1,4 18,5 8 0,75
KEHA8LH 8 2,5 24 10 1,35
KEHA10LH 10 4 28 14 2,25
KEHA13LH 13 6,4 36 18 3,8
