Haklift
  • Not for lifting

Safety linch pin equipped with a spring.



  • Material: Steel
  • Finish: Electro galvanized
    Select a row from the table below, then click the add to quote button

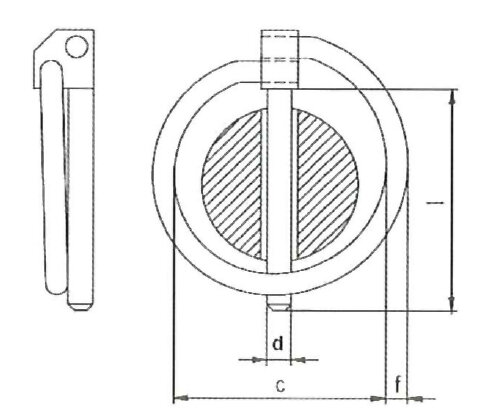

    Part Code Pin diameter
    mm
    Packing Qty. d
    mm
    c
    mm
    f
    mm
    l
    mm
    Weight
    kg/100pc
    RES045 4,5 50 4,5 34 3,4 42 2
    RES06 6 50 6 41 3,4 42 2,8
    RES08 8 50 8 41 3,4 42 3,5
    RES10 10 50 10 41 3,4 42 4,4
    RES12 12 50 12 41 3,4 42 5,72
