Irongrip

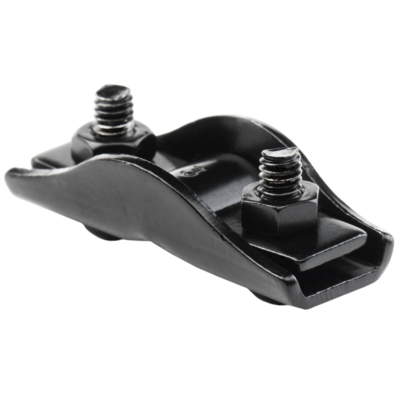

Wire rope clips for steel wire ropes for general applications.

Features:

  • One clip is good for stays and braces
  • Two clips makes the fixation approved for dynamic lifting
  • Tested and approved for lifting with modern wire ropes (1960 N/mm2)
  • Efficiency above 90% of MBL of the wire
  • KTL e-coating give better corrosion resistance than electro-galvanization and is better for the environment
  • Stainless steel (AISI 316) is available for demanding environments

The IronGrip Wire Clips are approved for lifting applications for up to 5 mm ropes/wires.

  • Material: Steel EN 10 130 – DC01, bolt class 8.8
  • Temperature range: –50 up to +100 °C
  • Finish: KTL-cataphoresis, black. (Better corrosion resistance and less environmental impact than electrogalvanization).
Wire rope clips for steel wire ropes. To be used for general applications.
Wire rope clips for steel wire ropes. To be used for general applications.
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Rec. number of locks lifting Rec. number of locks not lifting Weight
kg/100pc
VLBG03 3 2 1 1,7
VLBG04 4 2 1 2,5
VLBG05 5 2 1 4,5
