Irongrip

General: Wire rope clamp type, approved for lifting. Requires fewer clamps per fixation, e.g. two wire clamps instead of four, for 16 mm cable. Symmetrical – cannot be wrongly fitted. The clamps ensure fixation of the wire to a degree of at least 90% of the minimum breaking load of the wire in accordance with the current European standard.
Design: Bases of cast steel.

  • Finish: Hot dip galvanized
  • Note: Follow the fitting instructions in the user manual before use. Not for use with compacted or hammered wire ropes.

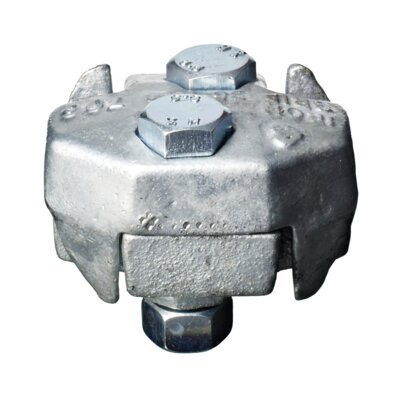

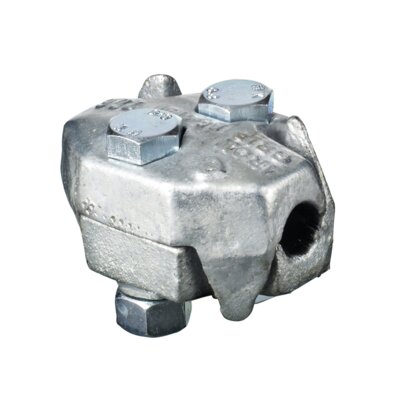

    Irongrip BG-100 wire rope grip
    Irongrip BG-100 wire rope grip
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Thread No. of clamps when lifting* Moment
    Nm
    Weight
    kg/100pc
    VLBG06 5-6 M6 2 9,5 9
    VLBG08 6.5-8 M6 2 9,5 12
    VLBG10 8.5-10 M8 2 22 20
    VLBG12 11-12.5 M10 2 44 39
    VLBG16 13-16 M12 2 75 72
    VLBG20 17-20 M14 2 120 120
    VLBG25 21-25 M18 2 260 280
    VLBG34 26-34 M20 2 350 770
