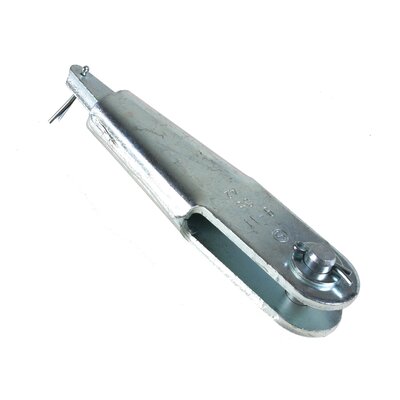

Symmetrical wedge socket terminations for stranded steel wire ropes conforming to
EN 12385-5 for lifts.

  • Marking: According to standard
  • Temperature range: -20°C up to +100°C
  • Finish: Galvanized
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7

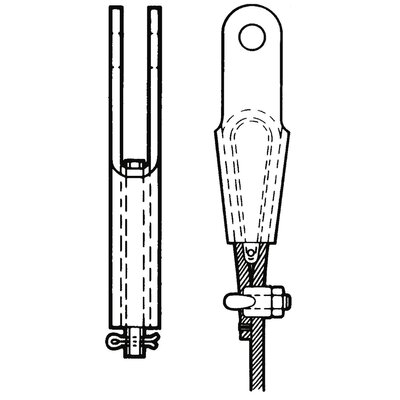

    Wedge_socket_drawing_6

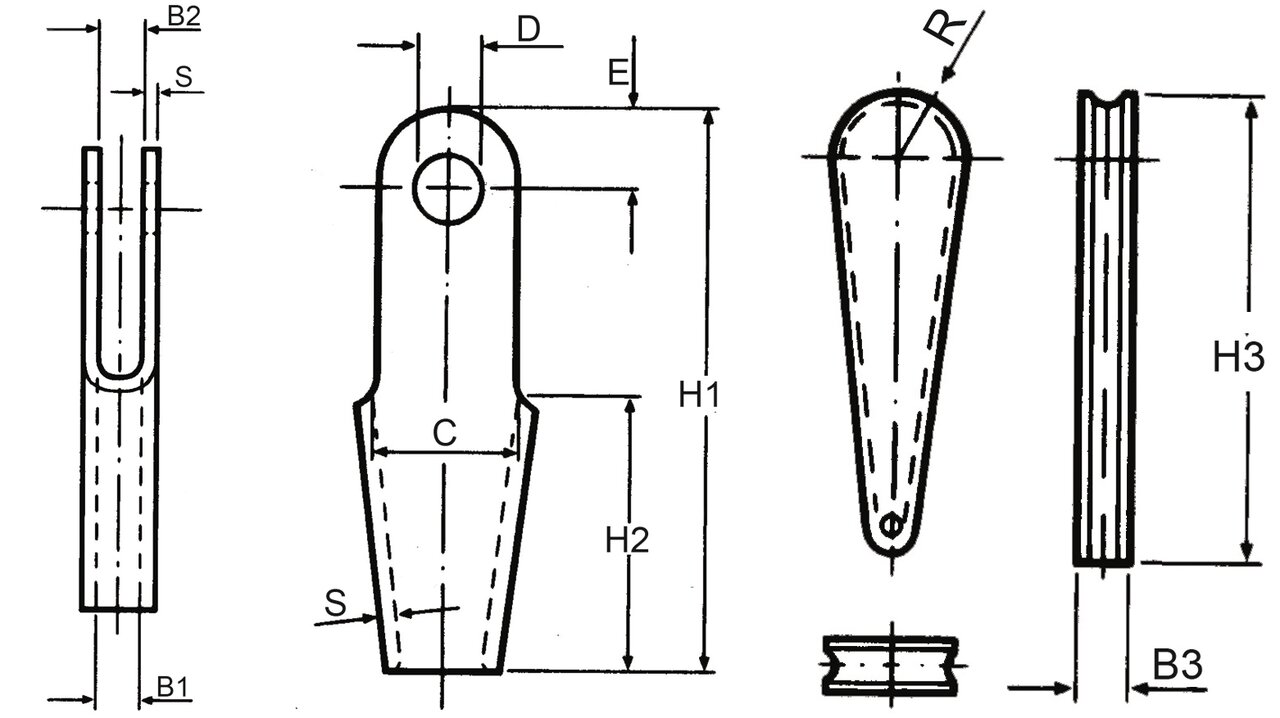

    Wedge_socket_drawing_7
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Finish B1
    mm
    B2
    mm
    B3
    mm
    C
    mm
    D
    mm
    E
    mm
    H1
    mm
    H2
    mm
    H3
    mm
    R
    mm
    S
    mm
    Weight
    kg
    KII08 6-8 Galvanized 12 14 11 37 12 20 150 75 92 12,5 4 0,57
    KII11 9-11 Galvanized 15 17 14 48 16 26 190 95 117 16 6 1,05
    KII14 12-14 Galvanized 20 22 18 58 18 32 230 115 141 19 8 1,89
    KII17 15-17 Galvanized 23 25 21 70 22 36 260 130 162 23 10 3,26
    KII20 18-20 Galvanized 26 27 24 82 25 40 300 150 186 26 12 5,25

    * For intermediate rope diameter select socket with nearest following size.
