Typical applications: Cranes, winches, hoist blocks, wire rope slings, controls and signal devices.

ISO 4309 Rope Category No: All Diameters RCN.04

  • Rope construction: 1x19 | 6x7+IWS | 6x36+FC
  • Material: AISI 316
  • Slings Sling wire rope
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Overhead cranes For the use with overhead crane
  • Agriculture and livestock Wire for agriculture

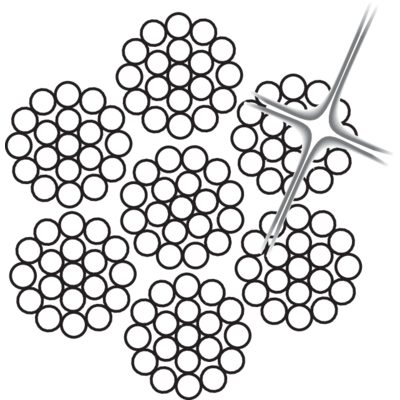

Stainless steel 6x19M-WSC AISI 316 wire rope core structure
Stainless steel AISI 316 1x19 wire rope core structure
6x7-WSC[225mm]
6x36-FC [New]_225mm
Select a row from the table below, then click the add to quote button
Part Code length per reel
m
Min. breaking force
kg
Rope Weight
kg/100m
TEK01HK 100 95 1x19 0,7
TEK01HK50 50 95 1x19 0,7
TEK02HK 100 260 6x7+IWS 1,4
TEK02HK50 50 260 6x7+IWS 1,4
TEK03HK 100 580 6x7+IWS 3,4
TEK03HK50 50 580 6x7+IWS 3,4
TEK04HK 100 1 040 6x19+IWS 5,6
TEK04HK50 50 1 040 6x19+IWS 5,6
TEK05HK 100 1 320 6x19+IWS 8,5
TEK05HK50 50 1 320 6x19+IWS 8,5
TEK06HK 100 1 910 6x19+IWS 12,2
TEK06HK50 50 1 910 6x19+IWS 12,2
TEK08HK 100 3 390 6x19+IWS 23,3
TEK08HK50 50 3 390 6x19+IWS 23,3
TEK10HK custom 5 310 6x19+IWS 32,2
TEK10HK50 50 5 310 6x19+IWS 32,2
TEK12HK custom 7 590 6x19+IWS 46,4
TEK14HK custom 10 300 6X19+IWS 68
TEK16HK custom 13 600 6x19+IWS 86
TEK20HK custom 20 700 6x36+FC 148
