Haklift
  • Not for lifting

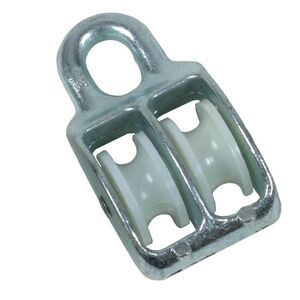

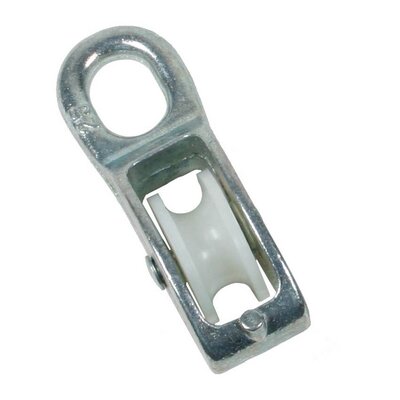

Pulley body is electro galvanized steel and wheel is nylon. Suitable for synthetic fibre ropes.



  • Material: Body: casted zinc / electro galvanized. Wheel: Nylon
  • Finish: Electro galvanized
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button

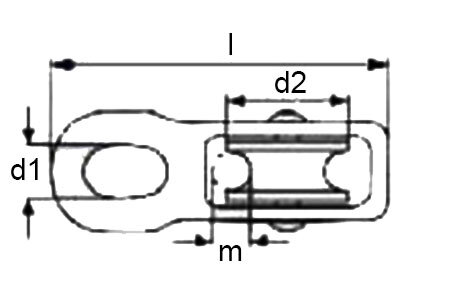

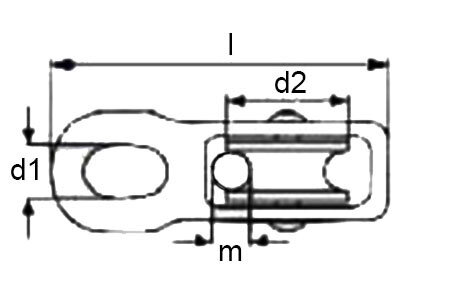

Part Code Rope diameter
mm
Minimum breaking strength
ton
For wire Ø
mm
d1
mm
d2
mm
l
mm
Weight
kg/100pc
PYL05 5 0,55 5 10 15 50 2,4
PYL06 6 0,6 6 11 20 60 4,1
PYL08 8 0,9 8 13 30 80 8,3
PYL09 9 1,1 9 14 40 93 12,7
PYL12 12 1,2 12 16 50 113 19,7
PYL16 16 1,3 16 20 65 135 38,5
