Haklift

Push trolley for IPE and T beams. The wheels are equipped with duration lubricated ball bearings. The hoist or lifter can be attached directly to the trolley eye with a hook or a shackle. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13157
Select a row from the table below, then click the add to quote button

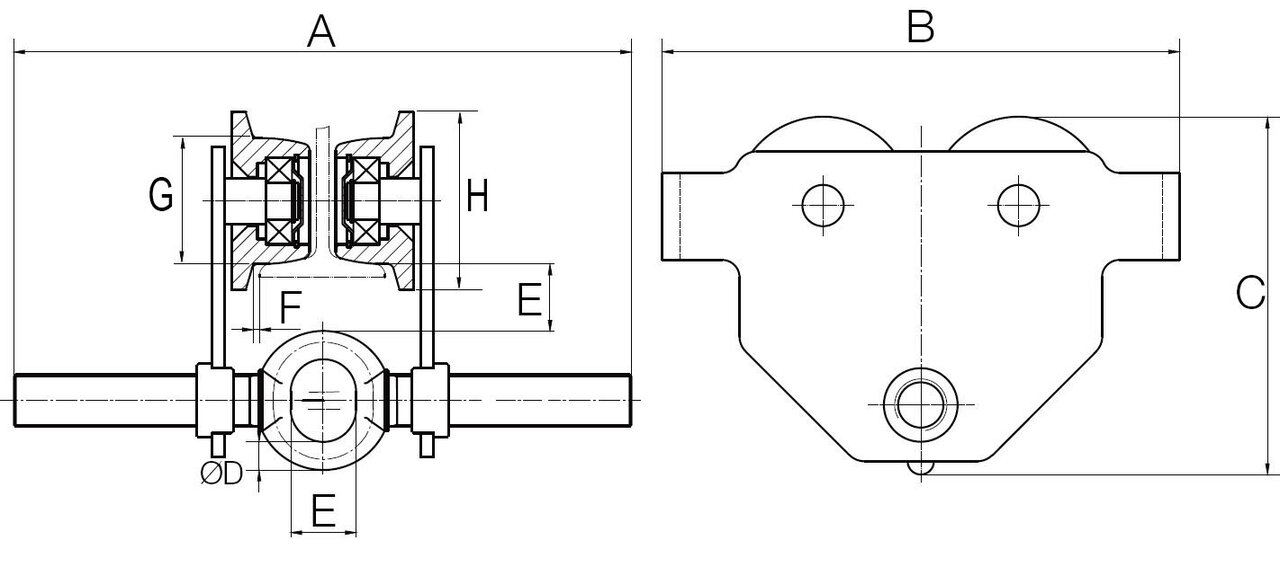

Part Code WLL Min. Radius Curve
m
I beam width range
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
SIVA05H 0.5 0.5 55-220 287 198 158 12.5 40 ~3 55 80 5
SIVA05HL 0.5 0.5 55-305 385 198 158 12.5 40 ~3 55 80 5.4
SIVA10H 1 0.7 58-220 300 238 183 17 31 ~3 68 96 8.8
SIVA10HL 1 0.7 58-305 388 238 183 17 31 ~3 68 96 9.3
SIVA20H 2 0.9 66-220 304 277 208 20 31 ~3 80 110 14
SIVA20HL 2 0.9 66-305 405 277 208 20 31 ~3 80 110 14.8
SIVA30H 3 1.2 74-220 328 324 249 26 31 ~3 100 132 23
SIVA30HL 3 1.2 74-305 429 324 249 26 31 ~3 100 132 24.1
SIVA50H 5 1 90-220 359 373 296.5 28 40 ~5 120 155 40
SIVA50HL 5 1 90-305 435 373 296.5 28 40 ~5 120 155 41.1
