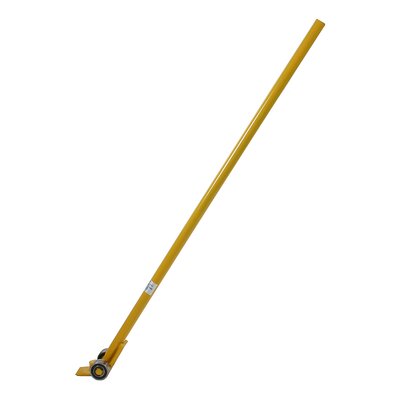

Load lever with roller is suitable for moving machines and equipment – it is an ideal tool for lifting (to free from the ground), shifting and positioning heavy and challenging objects in industrial maintenance, installations, etc. The function is based on a simple leverage mechanism, and the heel is equipped with metal wheels. Load lever is well suited also for use together with cargo trolleys. Lifting claw’s height is 13 mm (ground clearance requirement for the object > 13 mm). Lever angle (claw – rod) is about 120°.
Lift claw height at extreme position (rod cranked to the floor) approx. 120 mm. Ergonomically efficient lifting height approx. 80 mm.
- Features: Iron wheels
- Material: Steel
- Finish: Painted, yellow
- Note: Use only by human power
SPARE PARTS
| Spare part (product code) | Description | Suitable for load lever (product code) |
| SIIRTAN50VR | "E" retaining ring for wheel axle end | SIIRTAN50 |
Also other spare parts available with a delivery time, ask our sales for more information
