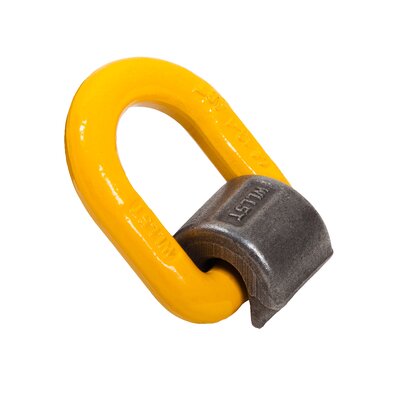

Weld-on lifting point for all lifting directions. Equipped with a spring that holds the eye in desired position.
- Material: Steel
- Marking: According to standard, CE-marked
- Temperature range: -40 - (+)400°C
- Finish: Painted, yellow
- Standard: EN 1677-1
- Safety factor: 4:1
Select a row from the table below, then click the add to quote button
WORKING LOAD LIMITS
 |
 |
 |
 |
|
 |
 |
|
||
| Product | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | |
| 0 - 45° | 45-60° | 0 - 45° | 45-60° | ||||||
| NS8HI1 | 1,12 | 1,12 | 2,24 | 2,24 | 1,57 | 1,12 | 2,35 | 1,68 | |
| NS8HI2 | 2 | 2 | 4 | 4 | 2,8 | 2 | 4,2 | 3 | |
| NS8HI3 | 3,15 | 3,15 | 6,3 | 6,3 | 4,41 | 3,15 | 6,62 | 4,73 | |
| NS8HI5 | 5,3 | 5,3 | 10,6 | 10,6 | 7,42 | 5,3 | 11,13 | 7,95 | |
| NS8HI8 | 8 | 8 | 16 | 16 | 11,2 | 8 | 16,8 | 12 | |
| NS8HI15 | 15 | 15 | 30 | 30 | 21 | 15 | 31,5 | 22,5 |
