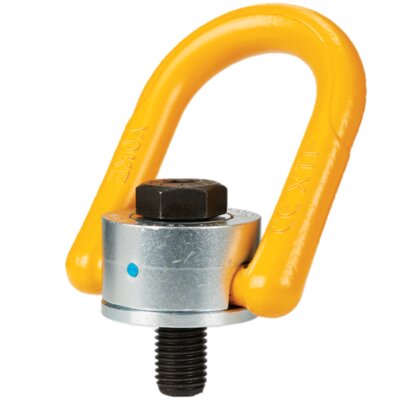

Swivel Hoist Ring 8-231

  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted.
  • Standard: EN 1677-1
  • Note: Built-in RFID/NFC chip
  • Safety factor: 4:1
  • Grade: 10
Swivel Hoist Ring 8-231 Swivel Hoist Ring 8-231
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Torque
Nm		 Thread
M
mm		 Thread length (E)
mm		 Pitch DIN13 A
mm		 B
mm		 C
mm		 D
mm		 F
mm		 G
mm		 H
mm		 R
mm		 S
mm		 SW
mm		 Weight
kg
NS8PKL10 1 100 M 12 20 1,75 33 40 31 11 80 58 23 17 8 19 0,3
NS8PKL15 1,5 120 M 14 21 2 50 56 45 17 117 90 36 27 10 22 0,9
NS8PKL20 2 150 M 16 24 2 50 54 46 17 117 90 36 27 10 24 0,9
NS8PKL25 2,5 200 M 18 26 2,5 65 78 57 20 153 108 44 34 12 30 1,9
NS8PKL30 3 250 M 20 30 2,5 50 52 49 17 117 90 36 27 12 30 1
NS8PKL50 5 400 M 24 36 3 72 81 59 25 163 125 44 37 14 36 2,6
NS8PKL56 5,6 400 M 27 38 3 87 86 79 30 204 148 62 46 17 41 4,9
NS8PKL78 7,8 500 M 30 48 3,5 87 94 81 30 204 148 62 46 17 46 5
NS8PKL125 12,5 1 000 M 36 54 4 110 112 98 36 247 188 75 57 22 55 9,6
Lifting method Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5

 Lifting Chart 7

 Lifting Chart 6
Lifting Chart 8
No of legs
1
2
1
2
2
2
3-4
3-4
2
3-4
Angle of
indication
0°
0°
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsymm.
unsymm.
Thread Load capacity (ton)
M 8
0,5
1
0,5
1
0,7
0,5
1,1
0,8
0,5
0,5
M 10
0,7
1,4
0,7
1,4
1
0,7
1,5
1,1
0,7
0,7
M 12
1
2
1
2
1,4
1
2,1
1,5
1
1
M 14
1,5
3
1,5
3
2,1
1,5
3,2
2,3
1,5
1,5
M 16
2
4
2
4
2,8
2
4,2
3
2
2
M 18
2,5
5
2,5
5
3,5
2,5
5,3
3,8
2,5
2,5
M 20
3
6
3
6
4,2
3
6,3
4,5
3
3
M 24
5
10
5
10
7
5
10,5
7,5
5
5
M 27
5,6
11,2
5,6
11,2
7,8
5,6
11,8
8,4
5,6
5,6
M 30
7,8
15,6
7,8
15,6
10,9
7,8
16,4
11,7
7,8
7,8
M 36
12,5
25
12,5
25
17,5
12,5
26,3
18,8
12,5
12,5
M 42
15,6
31,2
15,6
31,2
21,8
15,6
32,8
23,4
15,6
15,6
M 48
20
40
20
40
28
20
42
30
20
20
M 56
22
44
22
44
30,8
22
46,2
33
22
22
M 64
22,5
45
22,5
45
31,5
22,5
47,3
33,8
22,5
22,5
