The universal swivel shackle DSS is a double swivel ring. It is specially designed for simultaneously lifting and rotating heavy loads. Its double swivel action ensures perfect alignment with the sling.

Features:

  • Swiveling under load
  • Usable for any kind of lifting operation
  • The tightening torque is stamped on all lifting rings in the GRADUP range.

Grade: GRADEUP (8+)

  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
    except grade/WLL
  • Note: On request the product can be certified for lashing.
  • Safety factor: 5:1
  • Grade: 8

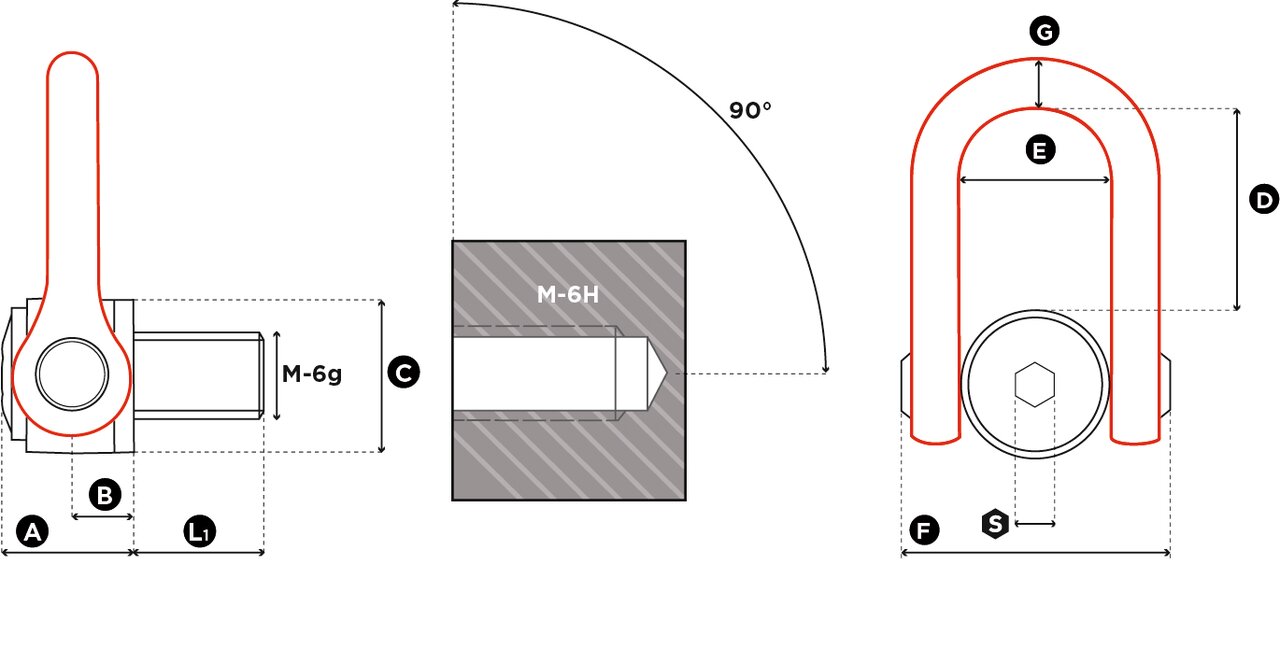

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Thread Torque
Nm
StandardL1
mm
S
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
NS8KL24DSS 4.5 M 24 (x3) 160 36 19 61 31 70 104 73 149 33 5.4
NS8KL30DSS 7.7 M 30 (x3.5) 250 45 19 61 31 70 104 73 149 33 5.5
NS8KL33DSS 8.5 M 33 (x3.5) 250 50 19 61 31 70 104 73 149 33 5.5
NS8KL36DSS 11 M 36 (x4) 320 54 19 61 31 70 104 73 149 33 5.5
NS8KL39DSS 12 M 39 (x4) 320 58 19 61 31 70 104 73 149 33 5.7
NS8KL42DSS 13 M 42 (x4,5) 400 63 19 61 31 70 104 73 149 33 5.8
NS8KL45DSS 14.5 M 45 (x4,5) 400 63 19 61 31 70 104 73 149 33 5.9
NS8KL48DSS 17 M 48 (x5) 600 68 19 79 38 90 125 91 182 45 11
NS8KL52DSS 19 M 52 (x5) 600 68 19 79 38 90 125 91 182 45 12.2
NS8KL56DSS 22 M 56 (x5,5) 600 78 19 79 38 90 125 91 182 45 11.3
NS8KL64DSS 25 M 64 (x6) 600 90 19 79 38 95 125 91 182 45 12.2
UNC thread also available: from UNC 1" to UNC 2"1/2
