Boltable lifting eyes, grade 80

Home / Products / LIFTING AND CARRYING HARDWARE / 9. LIFTING POINTS / Boltable lifting eyes, grade 80

Boltable lifting eye for lifting. Delivered without bolts. Bolt grade must be min. 8.8.

Material: Steel
Marking: According to standard, CE-marked
Temperature range: -40 - (+)400°C
Finish: Painted, yellow
Standard: EN 1677-1
Note: No side loading

Safety factor: 4:1

Select a row from the table below, then click the add to quote button

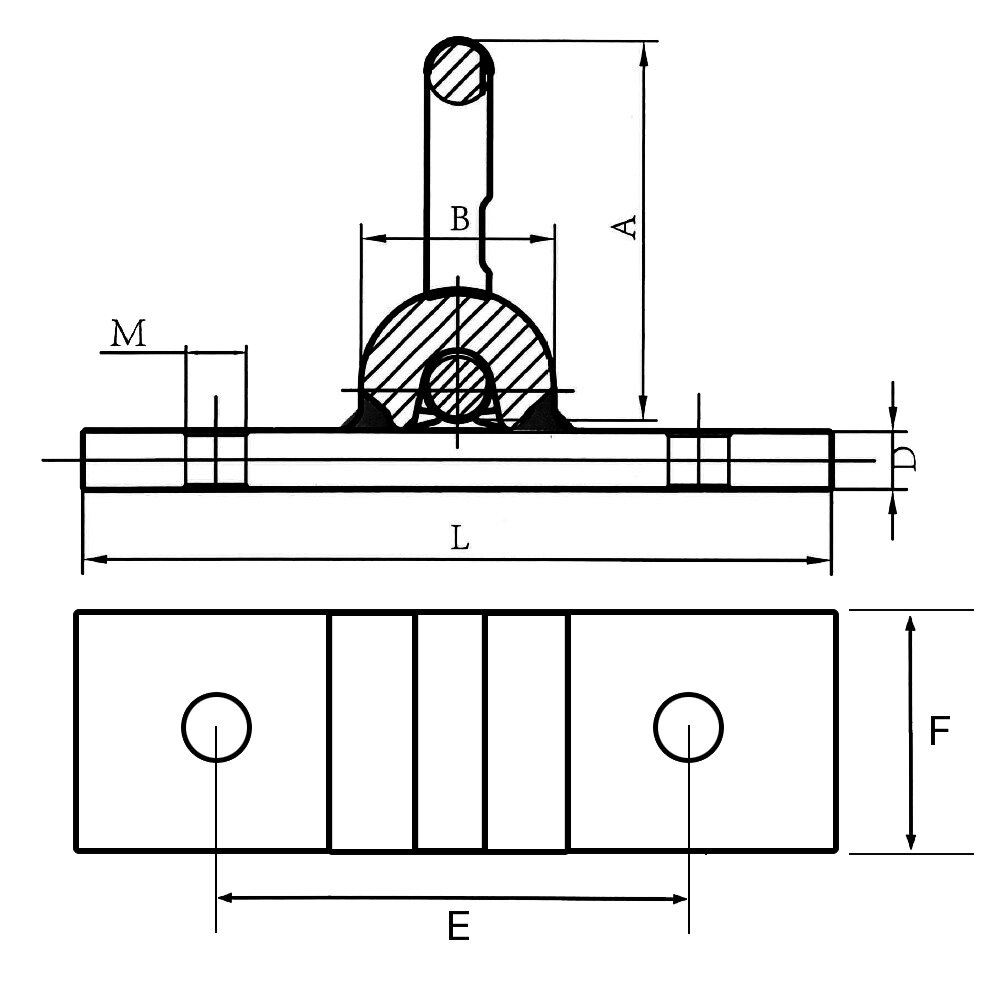

Part Code	WLL ton	Base dimensions mm	A mm	B mm	D mm	M mm	L mm	E mm	F mm	Weight kg
NS8PUL1	1	155 x 51	78	40	12	12,5	155	100	51	1,1
NS8PUL2	2	155 x 51	80,5	40	14	14,5	155	100	51	1,2
NS8PUL3	3	155 x 51	94	46,5	16	16,5	155	100	51	1,5
NS8PUL5	5	180 x 60	118	60	20	22,5	180	120	60	2,6
NS8PUL8	8	220 x 62	141	63	26	26,5	220	145	62	4,9
