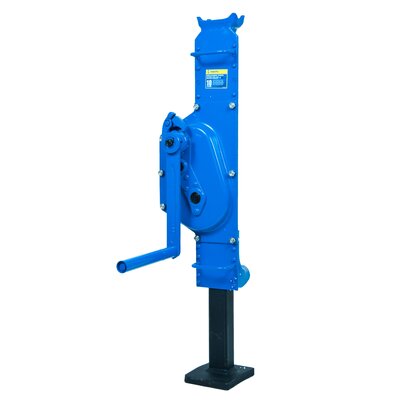

Haklift

Lifting with a fixed crank. Two different lifting points, side or top.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, blue
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lift height
mm
Min height
mm
base area L x W
m
Weight
kg
TUNKKI015S 1.5 300 60 / 600 100x110 13.5
TUNKKI03S 3 350 730 / 70 130x140 21.2
TUNKKI05S 5 350 730 / 80 140x170 28.5
TUNKKI10S 10 410 800 / 85 140x170 46.8
