Haklift

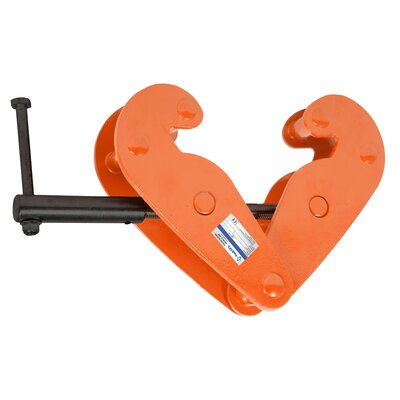

The clamp can be used for example to attach a hoist to an I or T beam. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, orange
  • Standard: EN 13155
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

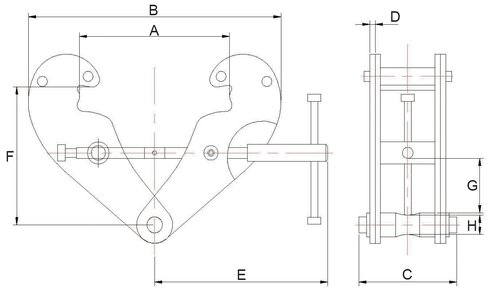

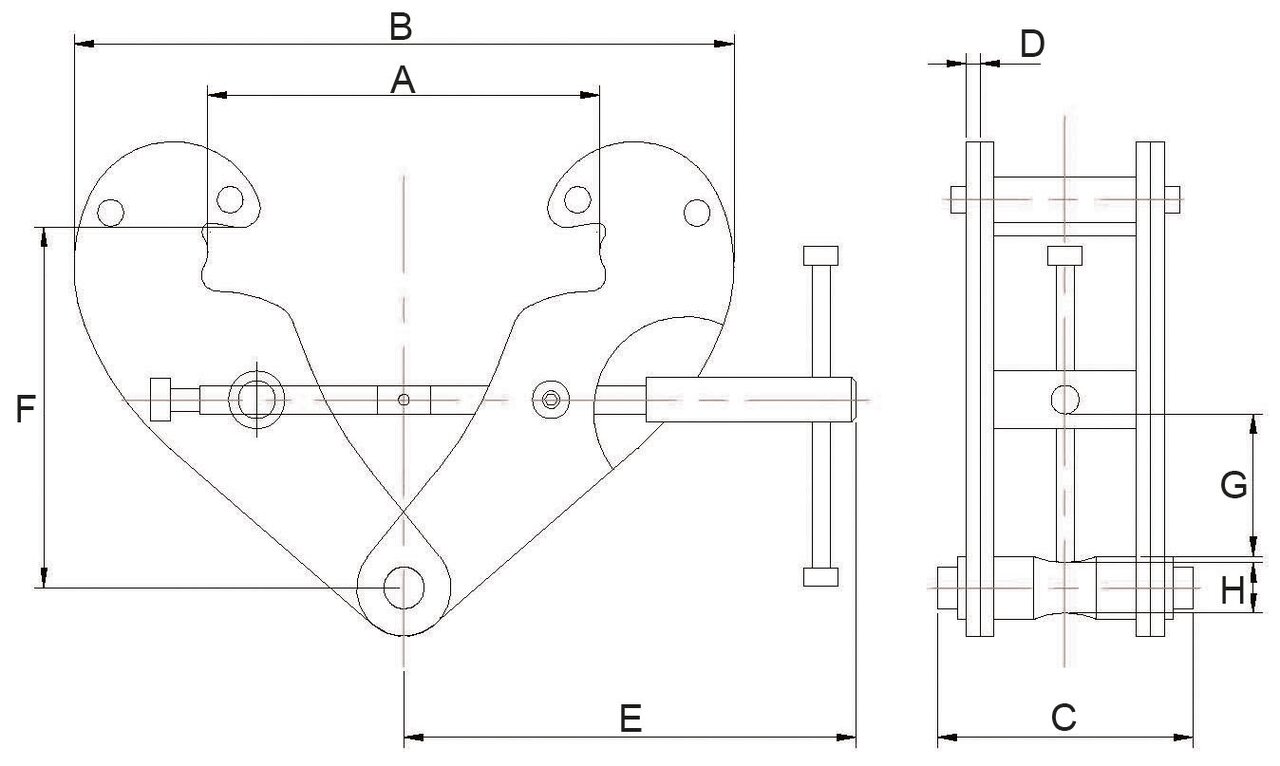

Part Code Capacity
ton
A max
mm
B max
mm
C
mm
D
mm
E
mm
F min
mm
F max
mm
G min
mm
H
mm
B.min Weight
kg
TARPALH10 1 270 370 94 4 198 100 154 22 20 183 3.5
TARPALH20 2 270 370 102 6 198 100 154 22 20 183 4.5
TARPALH30 3 355 500 132 8 263 148 219 46 22 243 9.5
TARPALH50 5 355 500 142 10 263 148 219 43 28 243 11
TARPALH100 10 364 521 180 12 285 165 239 51 38 269 16
