Haklift

Haklift Lever Hoist is a hoist of high quality, it is durable and easy to operate using the ergonomic rachet lever. Construction is compact and light weight. The standard lifting height is 3 m. Other lifting heights are also available with fast delivery time from stock.



Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • The unique surface treatment gives excellent corrosion protection and low operating volume
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection, HF -13,56 Mhz
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available



  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked
  • Finish: Orange / black Powder coated finish and plated frame components
  • Standard: EN 13157
  • Note: RFID equipped

    NOTE: With overload protector models product code ends with Y-letter. (0,5 - 9,0 t)

    Select a row from the table below, then click the add to quote button

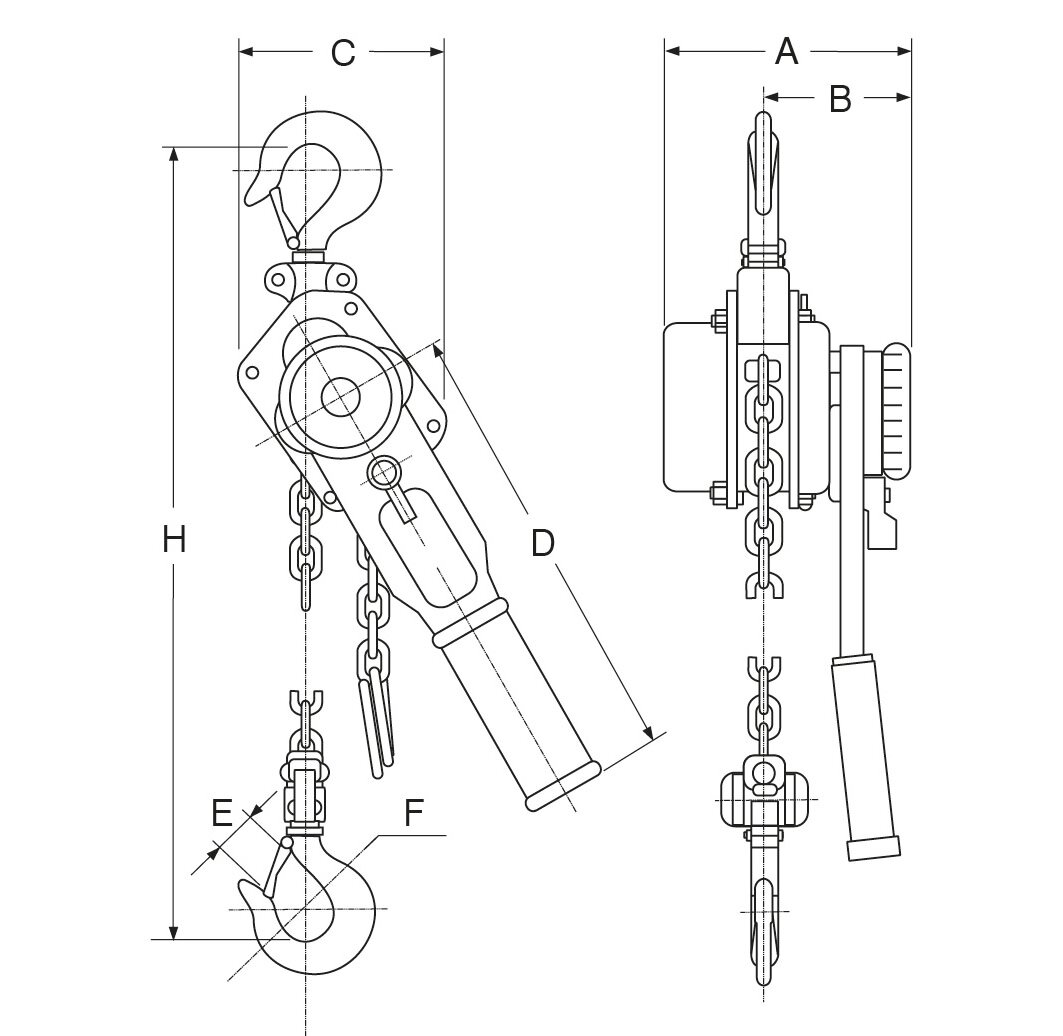

    Part Code WLL Lifting height
    m
    Chain falls Chain diam.
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    H
    mm
    Weight
    VTHA250 0,25 3 1 4 x12 100 70 56 163 20 31 235 3
    VTHA500 0,5 3 1 5 x 15 150 90 118 253 22 32 310 6,3
    VTHA500Y 0,5 3 1 5 x 15 150 90 118 253 22 32 310 6,3
    VTHA800 0,8 3 1 5,6 x 17 158 98 132 273 23 36 340 7,5
    VTHA800Y 0,8 3 1 5,6 x 17 158 98 132 273 23 36 340 7,5
    VTHA1600 1,6 3 1 7,1 x 21 185 111 145 378 29 43 400 11,9
    VTHA1600Y 1,6 3 1 7,1 x 21 185 111 145 378 29 43 400 11,9
    VTHA3200 3,2 3 1 10 x 28 212 124 198 418 37 50 520 25,3
    VTHA3200Y 3,2 3 1 10 x 28 212 124 198 418 37 50 520 25,3
    VTHA6300 6,3 3 2 10 x 28 212 124 230 418 43 53 640 40,6
    VTHA9000 9 3 3 10 x 28 212 124 338 418 44 67 730 54,9
