Haklift

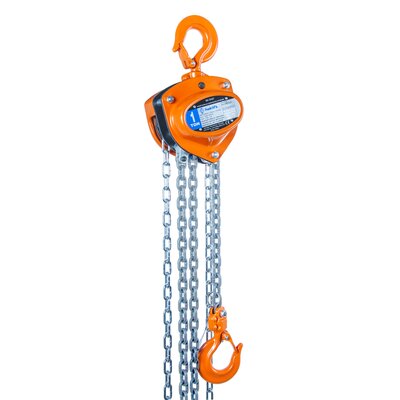

Haklift Chain Block is a hoist of high quality, it is durable and easy to operate using the ergonomic hand chain. The maximum workload is achieved with a fairly low manual force. The standard lifting heights are 3 m and 6 m. Other lifting heights are also available with fast delivery time from stock.



Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • The unique surface treatment gives excellent corrosion protection and low operating volume
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection, HF -13,56 Mhz
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available
  • Can be supplied with overload protection (OLP) device.
  • Other lifting heights are also available upon request
  • Length of the hand chain is always the same as the lifting height


ALSO AVAILABLE WITH OVERLOAD PROTECTION 500 - 10.000 KG
(Y-letter to the end of the product code)



  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked
  • Finish: Orange powder coated body and plated frame components
  • Standard: EN 13157
  • Note: RFID equipped
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Chain falls Chain diam.
mm
A
mm
B
mm
C
mm
D
mm
H
mm
Weight
kg
KTHA1000 1 3 1 6,3 x 19 150 142 26 39 330 12
KTHA10000 10 6 4 9 x 27 360 183 47 65 820 104.6
KTHA10006 1 6 1 6,3 x 19 150 142 26 39 330 12
KTHA2000 2 3 1 8 x 24 185 175 35 49 385 20
KTHA20000 20 8 8 9 x 27 577 183 75 90 1,060 200
KTHA20006 2 6 1 8 x 24 185 175 35 49 385 20
KTHA250 0.25 3 1 4 x 12 108 106 20 30 260 6
KTHA2506 0.25 6 1 4 x 12 108 106 20 30 260 6
KTHA3000 3 3 2 7,1 x 21 220 158 37 50 510 24
KTHA30006 3 6 2 7,1 x 21 220 158 37 50 510 24
KTHA500 0.5 3 1 5 x 15 130 128 22 34 280 9
KTHA5000 5 3 2 9 x 27 255 183 43 60 615 37
KTHA50006 5 6 2 9 x 27 255 183 43 60 615 37
KTHA5006 0.5 6 1 5 x 15 130 128 22 34 280 9
