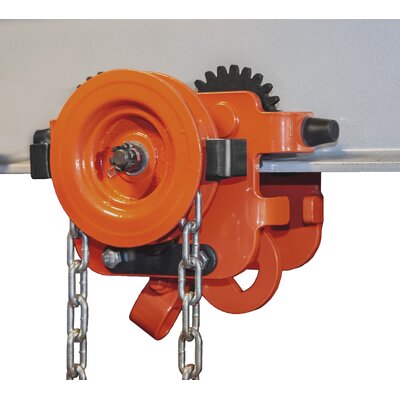

Haklift
  • the trolley moves on the beam by pulling the hand chain
  • standard length of a hand chain is approx. 2,5 m, allowing for mounting the trolley at about 3,5-4 m height
  •  0,5 / 1,0 / 2,0 t models can be integrated with Haklift KTHA and VTHA hoists
  • also available with longer chain
  • suitable for I- and T-beams
  • Eqipped with rupper end stops
  • the hoist/lifter is attached directly to the trolley eye from a hook or with a shackle
  • wheels are equipped with duration lubricated ball bearings
  • Each trolley has tested with 1.5x load
  • Test certificate and Declaration of Conformity enclosed with each product



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, orange
  • Standard: EN 13157
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

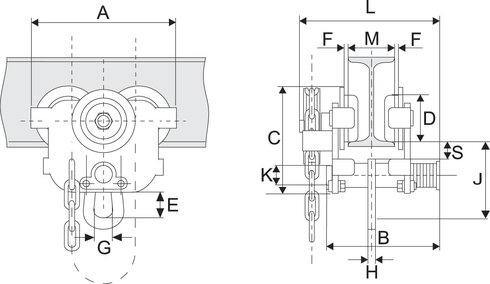

Part Code WLL
ton
I beam width range
mm
Min curve radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
S
mm
Weight
kg
SIVA05KS 0.5 50-135 800 205 198 150 55 30 1,5-2,0 28 8 111 28 239 27 8
SIVA05KSL 0.5 130-215 800 205 278 150 55 30 1,5-2,0 28 8 111 28 239 27 8
SIVA05KSXL 0.5 215-300 800 205 363 150 55 30 1,5-2,0 28 8 111 28 239 27 8
SIVA10KS 1 55-140 1,000 242 211 174 68 30 1,5-2,0 32 10 118 32 254 28 12.4
SIVA10KSL 1 140-215 1,000 242 286 174 68 30 1,5-2,0 32 10 118 32 254 28 12.4
SIVA10KSXL 1 215-300 1,000 242 371 174 68 30 1,5-2,0 32 10 118 32 254 28 12.4
SIVA20KS 2 65-155 1,100 270 238 194 80 49 1,5-2,0 40 12 147 36 277 27 18.1
SIVA20KSL 2 150-230 1,100 270 313 194 80 49 1,5-2,0 40 12 147 36 277 27 18.1
SIVA20KSXL 2 230-300 1,100 270 383 194 80 49 1,5-2,0 40 12 147 36 277 27 18.1
SIVA30KS 3 90-160 1,300 325 246 234 100 60 2,0-3,0 49 14 177 44 287 29 30.3
SIVA30KSL 3 160-230 1,300 325 316 234 100 60 2,0-3,0 49 14 177 44 287 29 30.3
SIVA30KSXL 3 230-300 1,300 325 386 234 100 60 2,0-3,0 49 14 177 44 287 29 30.3
SIVA50KS 5 90-180 1,500 370 280 267 110 79 2,0-3,0 59 16 219 55 320 29 46.5
SIVA50KSL 5 180-230 1,500 370 330 267 110 79 2,0-3,0 59 16 219 55 320 29 46.5
