Haklift

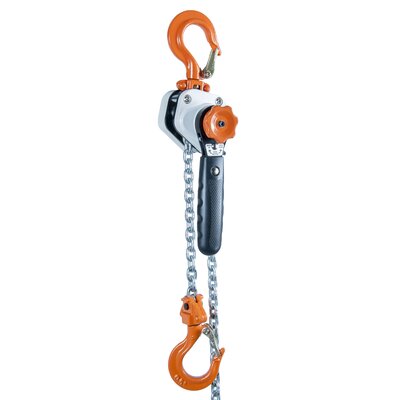

Quality and extra small lever hoist for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request. The hoist can also be used as a puller. 250, 500 and 750 hoist with carry-on bags.



  • Material: Aluminum
  • Marking: CE-marked
  • Finish: Painted, white / orange
Select a row from the table below, then click the add to quote button

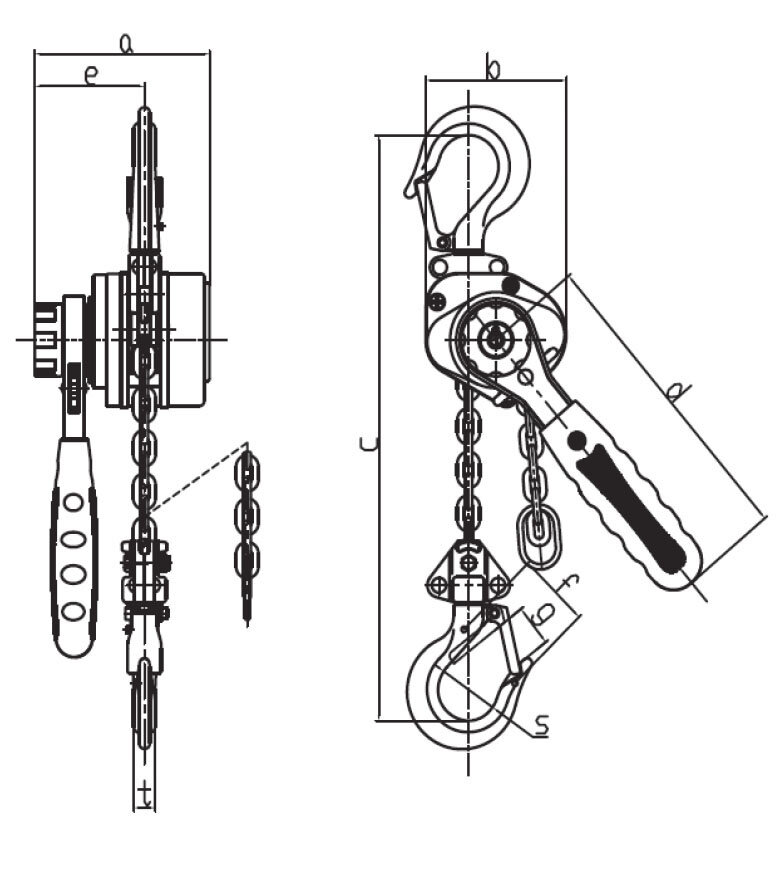

Part Code WLL
ton
Lifting height
m
Chain falls Chain diam.
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
s
mm
t
mm
Weight
kg
VTS250 0.25 3 1 3,2 x 9 87 68 200 145 55.5 35.5 21 32 11 2.2
VTS500 0.5 3 1 4,3 x 21 100.5 81 250 160 62.5 42 24.5 34.5 12 3.6
VTS750 0.75 3 1 5 x 15 105 92 260 180 64 42 28.5 35.5 14 4.7
VTS1500 1.5 3 1 7,1 x 19,9 122 109 330 220 68.5 52 35 42.5 21.5 8.5
VTS3000 3 3 2 7,1 x 19,9 122 160 432 220 68.5 61.9 43 50 24.5 12.4
