Haklift

Weld-on lifting point for all lifting directions. Equipped with a spring that holds the eye in desired position.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)400°C
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

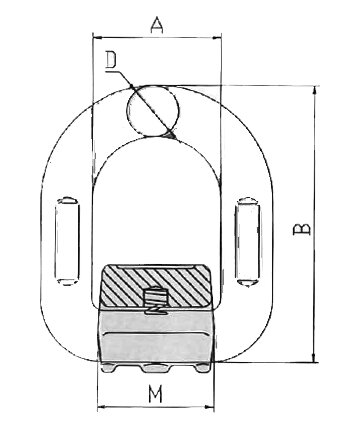

Part Code WLL
ton
A
mm
B
mm
D
mm
M
mm
Weight
kg
NS8HI1 1.12 41 78.5 13 37 0.4
NS8HI15 15 97 188 34 90 5.79
NS8HI2 2 42 88 14 40 0.47
NS8HI3 3.15 45 94 17 42.5 0.69
NS8HI5 5.3 55 118 22 50 1.46
NS8HI8 8 70 141 26.5 66.5 2.5

WORKING LOAD LIMITS

  Load 1 Load 6 Load 2 Load 5
Load 3
Load 3 Load 4 Load 4
Product WLL (t) WLL (t) WLL (t) WLL (t) WLL (t) WLL (t) WLL (t) WLL (t)
          0 - 45° 45-60° 0 - 45° 45-60°
NS8HI1 1,12 1,12 2,24 2,24 1,57 1,12 2,35 1,68
NS8HI2 2 2 4 4 2,8 2 4,2 3
NS8HI3 3,15 3,15 6,3 6,3 4,41 3,15 6,62 4,73
NS8HI5 5,3 5,3 10,6 10,6 7,42 5,3 11,13 7,95
NS8HI8 8 8 16 16 11,2 8 16,8 12
NS8HI15 15 15 30 30 21 15 31,5 22,5
