Lifting Eye Super Point 8-251

Pivots to 230°, rotates through 360° due to its unique ball bearing design.
Certified by DGUV GS-OA-15-04.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and batch code links to Test Certificate sheet.
Bolt are Metric thread (ASME / ANSI B18.3.1M).
Proof tested to 2

Show more

Product number:
  • The product is equipped with RFID chip

Pivots to 230°, rotates through 360° due to its unique ball bearing design.
Certified by DGUV GS-OA-15-04.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and batch code links to Test Certificate sheet.
Bolt are Metric thread (ASME / ANSI B18.3.1M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Super points meet or exceed all the requirements of ASME B30.26.
Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point.

Capable of rotating under load.

With the new WLL tables you can find the right Super Point attachment for your application and by the red marking on both sides you can measure disposal stage of the Super Point.

  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C - +200°C
  • Standard: EN 1677-1
  • Warning: Do not turn continuously in 90 degree direction at full load.
  • Safety factor: 4:1

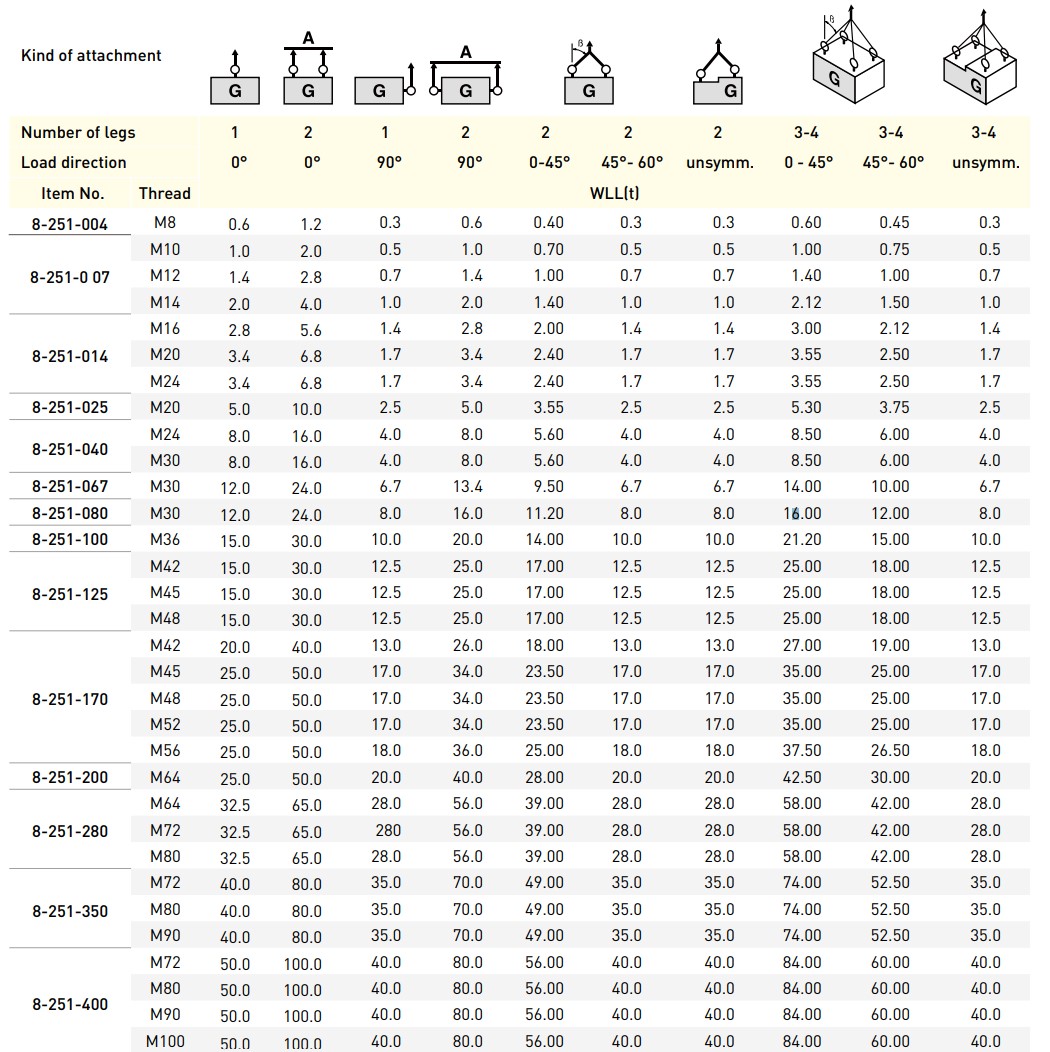

Kind of attachment Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5 Lifting Chart 6 Lifting Chart 7 Lifting Chart 8
Number of legs 1 2 1 2 2 2 2 3-4 3-4 3-4

Angle of inclination 90° 90° 0-45° 45-60° Unsymm. 0-45° 45-60°

Unsymm.

Item Thread         WLL (ton)
8-251-004 M8 0,6 1,2 0,3 0,6 0,4 0,3 0,3 0,6 0,45 0,3
8-251-007 M10 1 2 0,5 1 0,7 0,5 0,5 1 0,75 0,5
8-251-007 M12 1,4 2,8 0,7 1,4 1 0,7 0,7 1,4 1 0,7
8-251-007 M14 2 4 1 2 1,4 1 1 2,12 1,5 1
8-251-014 M16 2,8 5,6 1,4 2,8 2 1,4 1,4 3 2,12 1,4
8-251-014 M20 3,4 6,8 1,7 3,4 2,4 1,7 1,7 3,55 2,5 1,7
8-251-014 M24 3,4 6,8 1,7 3,4 2,4 1,7 1,7 3,55 2,5 1,7
8-251-025 M20 5 10 2,5 5 3,55 2,5 2,5 5,3 3,75 2,5
8-251-040 M24 8 16 4 8 5,6 4 4 8,5 6 4
8-251-040 M30 8 16 4 8 5,6 4 4 8,5 6 4
8-251-067 M30 12 24 6,7 13,4 9,5 6,7 6,7 14 10 6,7
8-251-080 M30 12 24 8 16 11,2 8 8 16 12 8
8-251-100 M36 15 30 10 20 14 10 10 21,2 15 10
8-251-125 M42 15 30 12,5 25 17 12,5 12,5 25 18 12,5
8-251-125 M45 15 30 12,8 25 17 12,8 12,8 25 18 12,5
8-251-125 M48 15 30 12,5 25 17 12,5 12,5 25 18 12,5
8-251-170 M42 20 40 13 26 18 13 13 27 19 13
8-251-170 M45 25 50 17 34 23,5 17 17 35 25 17
8-251-170 M48 25 50 17 34 23,5 17 17 35 25 17
8-251-170 M56 25 50 18 36 25 18 18 37,5 26,5 18
8-251-200 M64 25 50 20 40 28 20 20 42,5 30 20
8-251-280 M64 32,5 65 28 56 39 28 28 58 42 28
