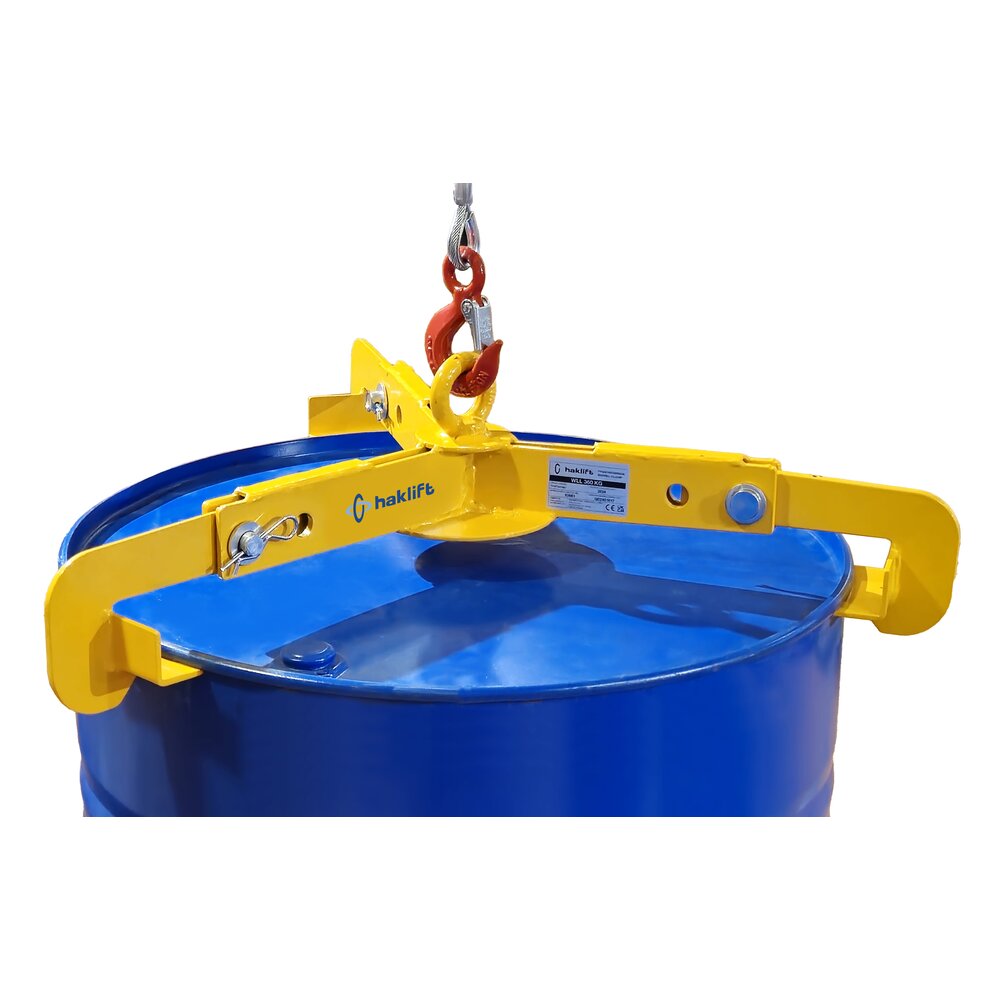

Drum clamp is intended for lifting and moving steel and plastic drums of different sizes in vertical position. The clamp has an adjustable grip size, and it is suitable for most 200 Iiter and 120 Iiter standard drums, both with lids and open ones. The function of the clamp requires that the drum has a protruding strong top edge under which the clamp jaws can engage. An upward force applied on the lifting eye simultaneously presses the jointed grab arms against the drum. They also remain automatically engaged on the drum although the clamp goes “slack” between lifts.
Grip sizes:
- External adjustment holes (200 l): min-max 510-580 mm
- Inner adjustment holes (120 l): min-max 410-480 mm
- Features: Lifting eye inner diameter 33 mm
- Material: Steel
- Marking: CE-marked
- Finish: Painted, yellow
SPARE PARTS
| Spare part (product code) | Description | Suitable for clamp (product code) |
| TYNTAR360VO3 | Fixing pin (for grab arm), incl. washers and R-clip (1 pc) | TYNTAR360 |
Also other spare parts available with a delivery time, ask our sales for more information
