Typical application: For elevators.

Standard: DIN 15315.

  • Finish: Galvanized
  • Note: Rope sockets acc. to DIN 15315 are not appropriate for ropes of more than 1770 N/mm²

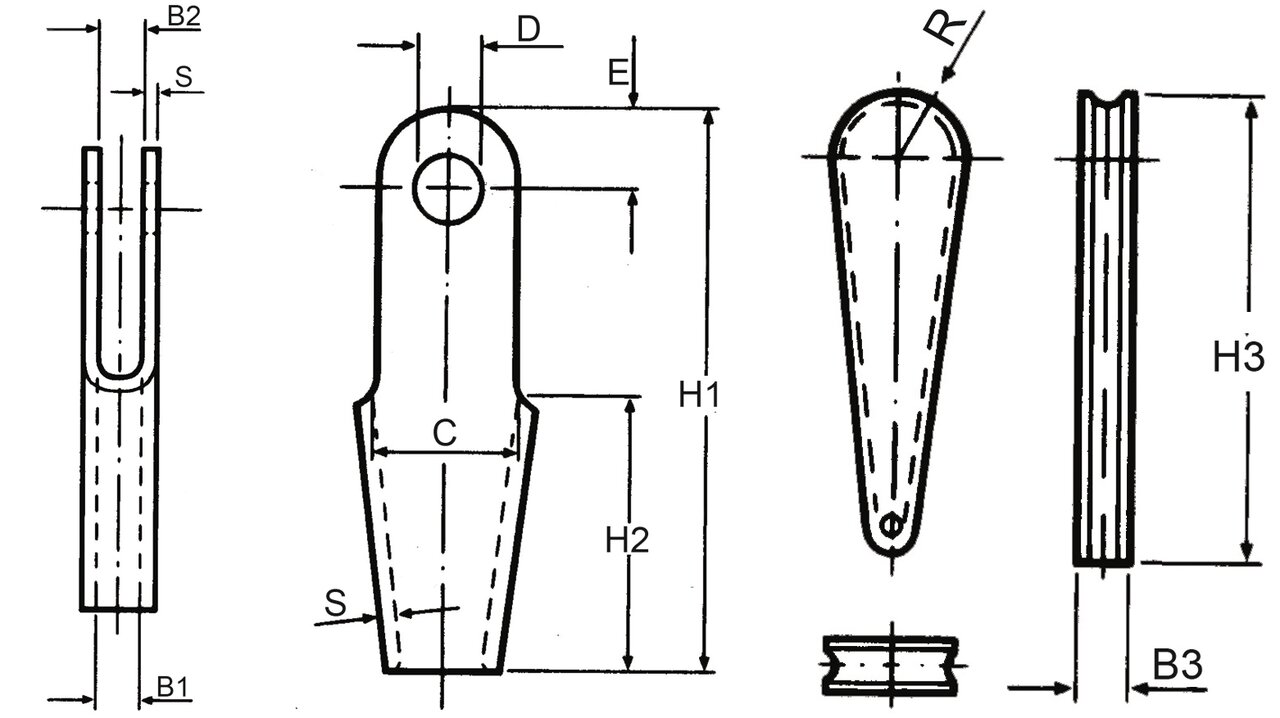

Wedge_socket_drawing_6
Wedge_socket_drawing_7
Select a row from the table below, then click the add to quote button
Part Code Size Rope Ø
mm
B1
mm
B2
mm
B3
mm
C
mm
D
mm
E
mm
H1
mm
H2
mm
H3
mm
R
mm
S
mm
Weight
kg
KII08 8 6-8 12 14 11 37 12 20 150 75 92 12,5 4 0.57
KII11 11 9-11 15 17 14 48 16 26 190 95 117 16 6 1.05
KII14 14 12-14 20 22 18 58 18 32 230 115 141 19 8 1.89
KII17 17 15-17 23 25 21 70 22 36 260 130 162 23 10 3.26
KII20 20 18-20 26 27 24 82 25 40 300 150 186 26 12 5.25
