Haklift

Clevis sling hook with latch. Hook is equipped with spring loaded safety latch. Attachment directly to the chain with clevis link.



  • Material: AISI 316
  • Marking: CE-marked
  • Temperature range: -40 - (+)400°C
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

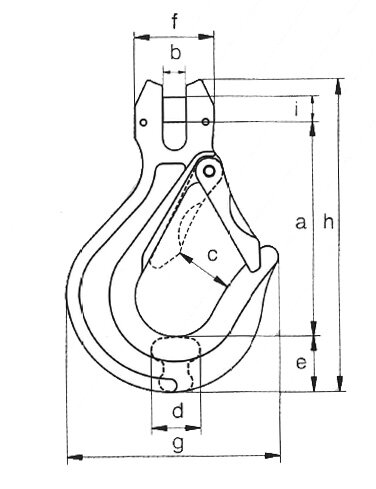

Part Code WLL For Chain Ø
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
i
mm
Weight
kg
SALKHK6 0.7 6 76 7 25 15 19 27 73 109 8 0.29
SALKHK78 1.2 8 95 9 28 20 22 32 85 133 9 0.55
SALKHK10 1.6 10 113 11 28 24 28 41 106 164 13 0.97
SALKHK13 2.7 13 138 15 38 32 40 52 133 208 16 1.86
