Swivel Safety Hook with Griplatch LKBK with Ball-bearing

Gunnebo Industries




WARNING!Not to be heat treated.





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

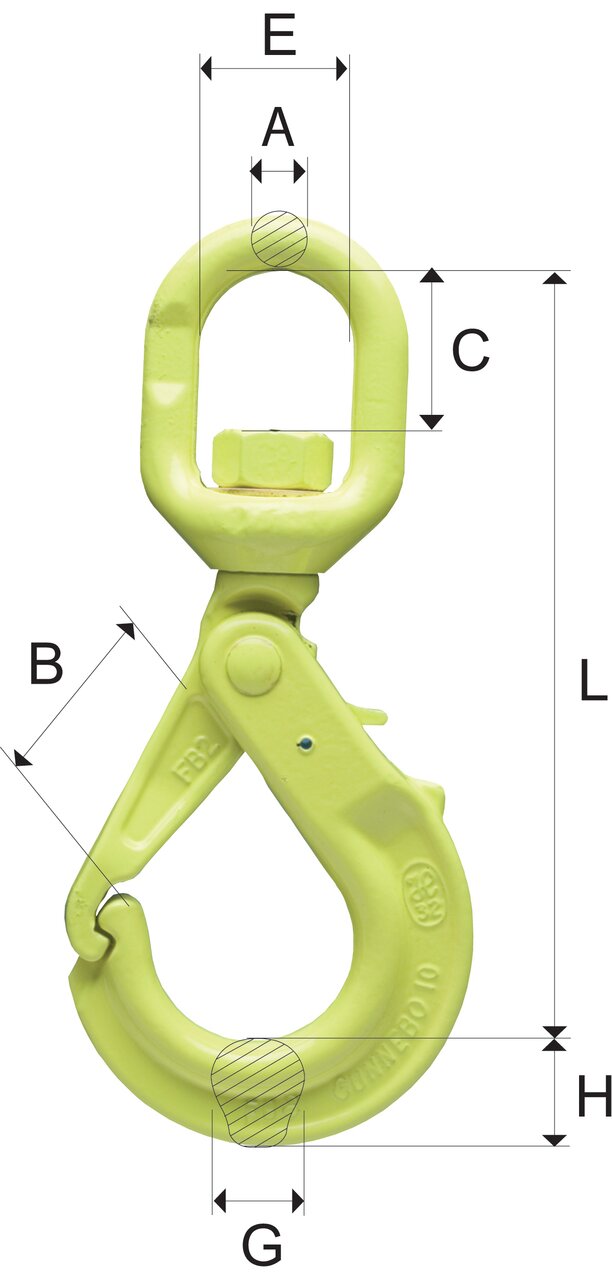

Part Code Code WLL
ton		 L
mm		 B
mm		 C
mm		 E
mm		 A
mm		 G
mm		 H
mm		 Weight
kg
VAKAKL1078LKBK LKBK-7/8-10 2,5 176 37 27 38 12 20 22 1,2
VAKAKL1010LKBK LKBK-10-10 4 213 47 35 44 15 22 29 1,9
VAKAKL1013LKBK LKBK-13-10 6,7 261 53 43 48 19 29 38 3,6
VAKAKL1016LKBK LKBK-16-10 10 323 68 61 61 25 30 45 6,2
