Gunnebo Industries

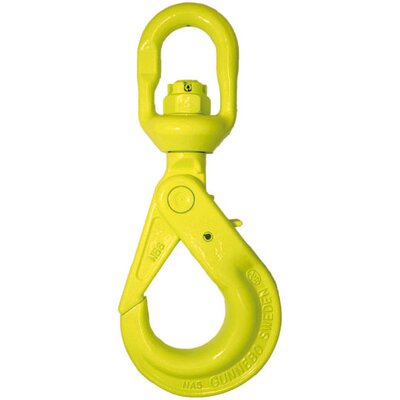

Swivel safety hook BKL, painted safety hook in quenched and tempered steel grade 10

  • Material: Quenched and tempered alloy steel grade 10, with recessed trigger.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Grade: 10
Select a row from the table below, then click the add to quote button

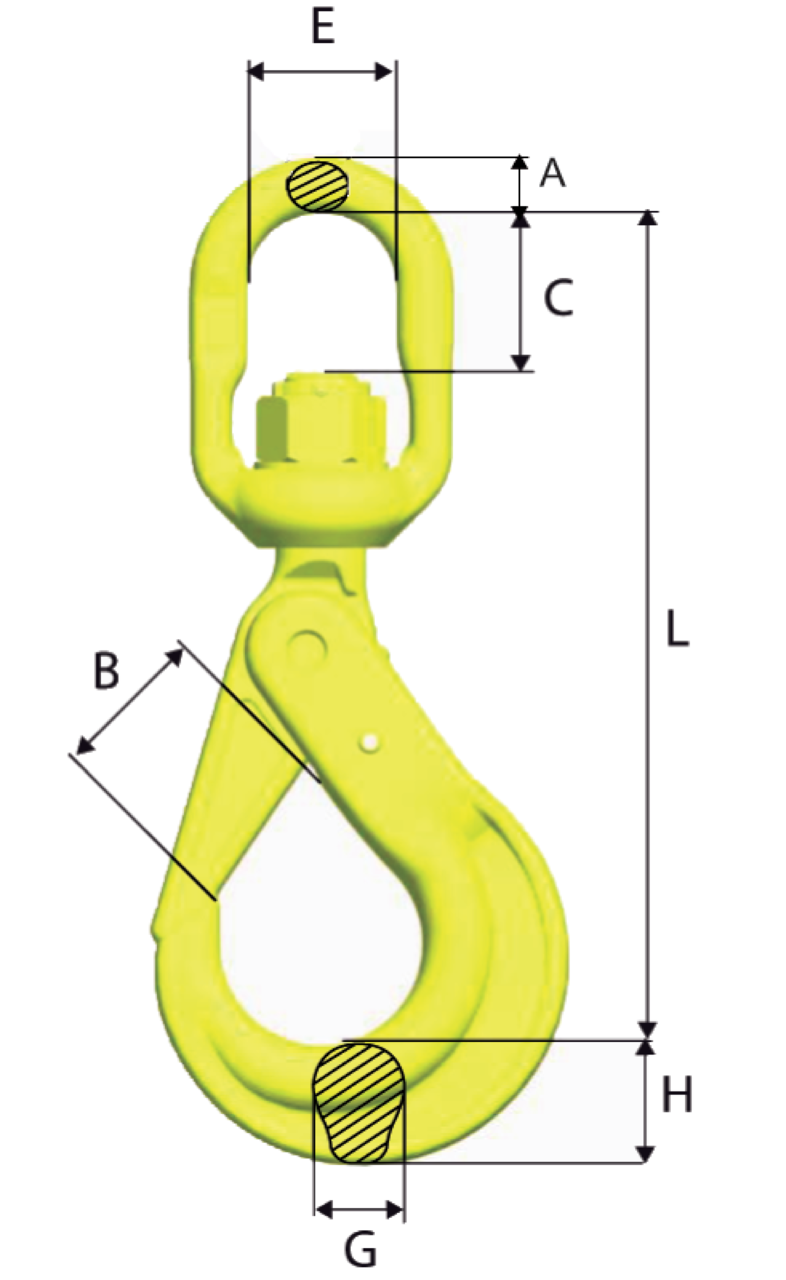

Part Code Code WLL
t
L
mm
B
mm
C
mm
E
mm
A
mm
G
mm
H
mm
Weight
kg
VAKAL1006BKL BKL-6-10 1,5 149 29 23 33 11 15 21 0.704
VAKAL1078BKL BKL-7/8-10 2,5 183 37 27 38 12 17 26 1.14
VAKAL1010BKL BKL-10-10 4,0 218 45 37 44 15 21 31 1.96
VAKAL1013BKL BKL-13-10 6,7 282 55 49 48 19 30 40 4.04
VAKAL1016BKL BKL-16-10 10,0 341 62 65 61 25 37 50 7.368
