Gunnebo Industries
  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-2
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

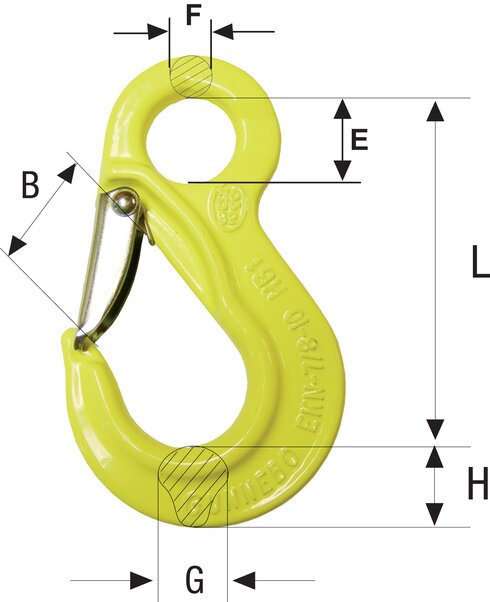

Part Code Code WLL
ton
L
mm
B
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
SALKAH1006EKN EKN- 6-10 1.5 94 24 22 10 17 20 0.4
SALKAH1078EKN EKN- 8-10 2.5 108 28 28 12 17 23 0.5
SALKAH1010EKN EKN-10-10 4 134 37 34 14 23 30 1
SALKAH1013EKN EKN-13-10 6.7 166 42 44 18 28 38 2.1
SALKAH1016EK EKN-16-10 10 203 50 56 22 36 47 3.9
SALKAH1020EK EKN-20-10 16 229 60 61 26 42 60 6.3
SALKAH1022EK EKN-22-10 20 267 73 64 31 43 67 8.7
SALKAH1026EK EKN-26-10 27 301 82 66 32 51 75 13.2
SALKAH1032EK EKN-32-10 40 353 96 90 38 61 98 25
