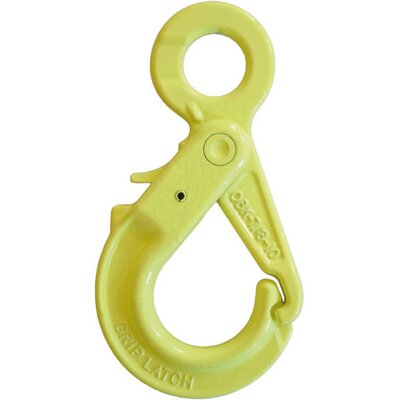

Safety Hook OBK, painted safety hook

Home / Products / WEBBINGS / CHAINS / STEEL WIRE ROPE SLINGS / 2. LIFTING CHAIN COMPONENTS / STEEL WIRE ROPE SLINGS / Gunnebo / Safety Hook OBK

We deliver a quality safety hook OBK in alloy steel

Material: Quenched and tempered alloy steel grade 10.
Marking: Code and grade.
Finish: Painted.
Warning: Not to be heat treated

Safety factor: : 4:1.
Grade: 10

Select a row from the table below, then click the add to quote button

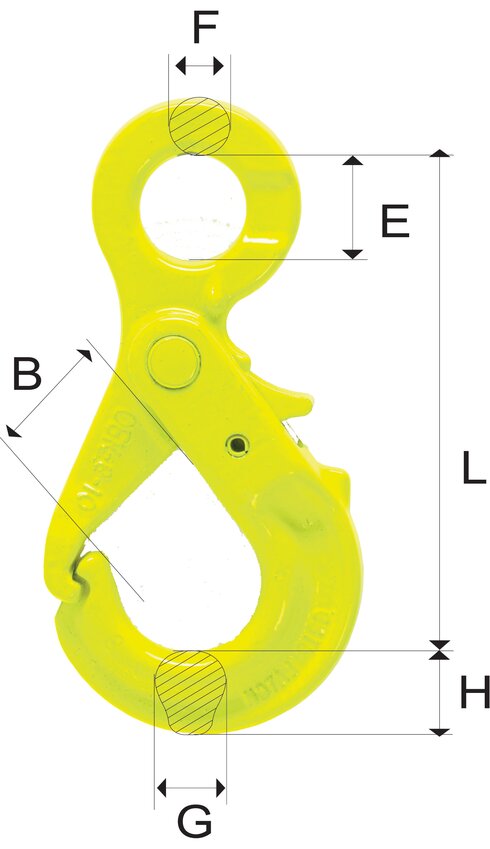

Part Code	Code	WLL ton	A mm	L mm	B mm	E mm	F mm	G mm	H mm	Weight kg
VAKA1006OBK	OBK-6-10	1,5	12	103	26	22	9	15	17	0,4
VAKA1078OBK	OBK-7/8-10	2,5	14	139	37	28	10	20	22	0,8
VAKA1010OBK	OBK-10-10	4	16	170	47	34	13	22	29	1,3
VAKA1013OBK	OBK-13-10	6,7	21	206	53	44	15	28	38	2,6
VAKA1016OBK	OBK-16-10	10	26	251	62	56	19	29	45	4,4
VAKA101820OBK	OBK-18/20-10	16	28	293	74	60	22	44	56	7,3
