Gunnebo Industries

Product Features

  • Instant mounting and placement on any part of the chain.
  • Shortening in both chain directions; upside down.
  • Designed to prevent accidental chain exit.
  • Can rest on the chain bone when shortening is not necessary.
  • The LC version offers secure mounting with locking kits on any desired part of the chain with a chain direction open for shortening.
  • CC version offers close open function in both chain directions for secure chain storage.
  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

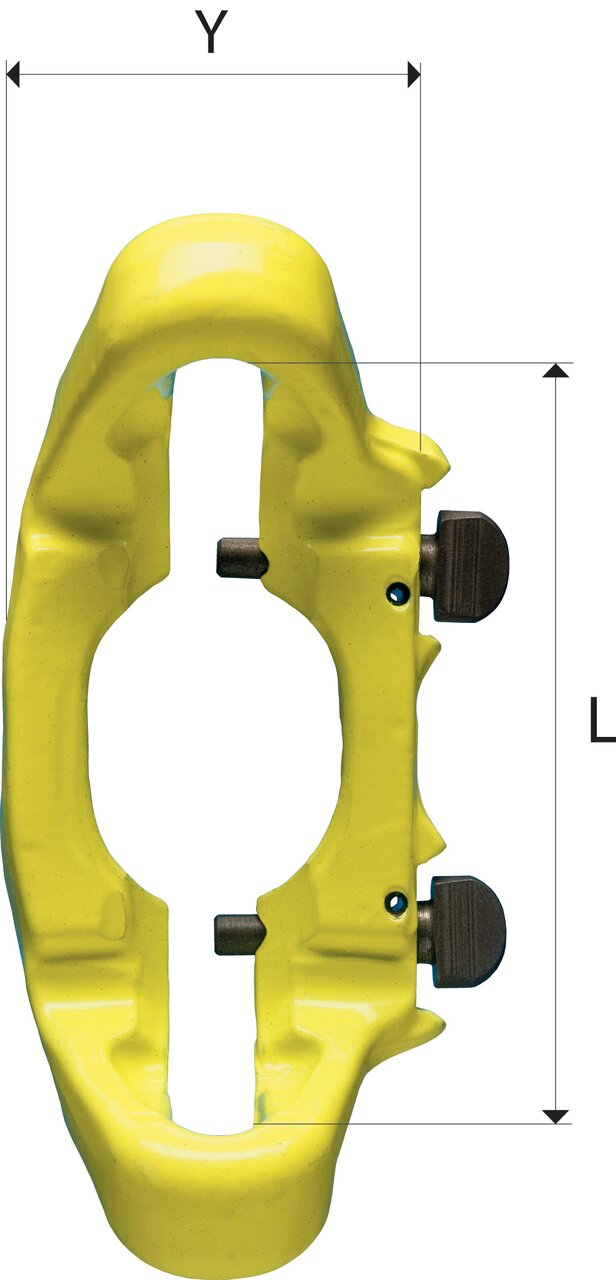

Part Code Code WLL
ton
X
mm
Y
mm
L
mm
Weight
kg
LYKA1008MIG MIG- 8-10 2.5 50 60 95 0.6
LYKA1010MIG MIG-10-10 4 70 77 125 1.1
LYKA1013MIG MIG-13-10 6.7 90 80 150 2.5
