Gunnebo Industries

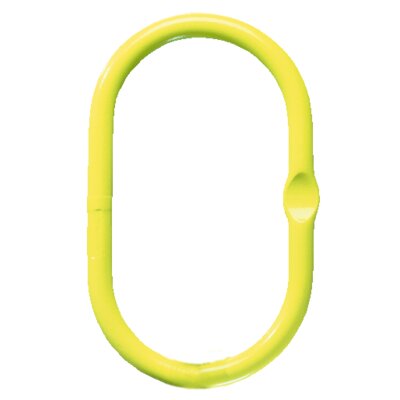

Oversized, for 1- and 2-leg sling.

  • Material: Quenched and tempered alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

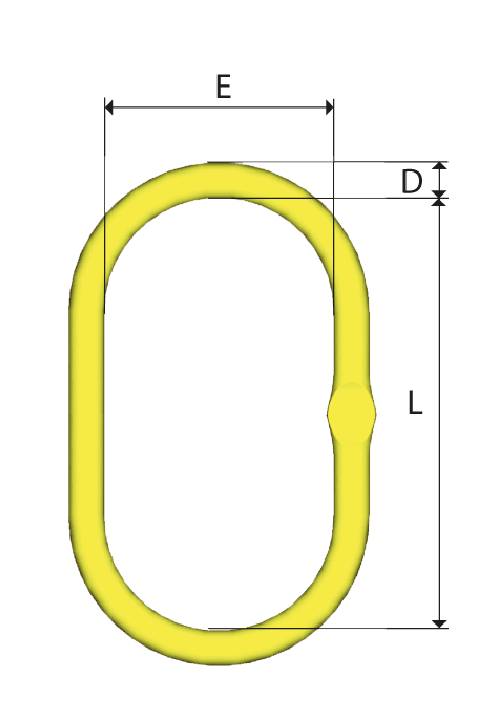

Part Code Code WLL
ton
For chain mm, 1-leg For chain mm, 2-leg L
mm
E
mm
D
mm
Weight
kg
NORA1008MFX MFX-108-10 4,25 8, 10 8 340 180 25 3,7
NORA101310MFX MFX-1310-10 7,5 13 10 340 180 28 4,7
NORA101613MFX MFX-1613-10 11,2 16 13 340 180 34 7,1
NORA102016MFX MFX-2016-10 16 20 16 340 180 40 9,6
