Gunnebo Industries

General: Designed for crane hooks, DIN 15401

  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: : 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

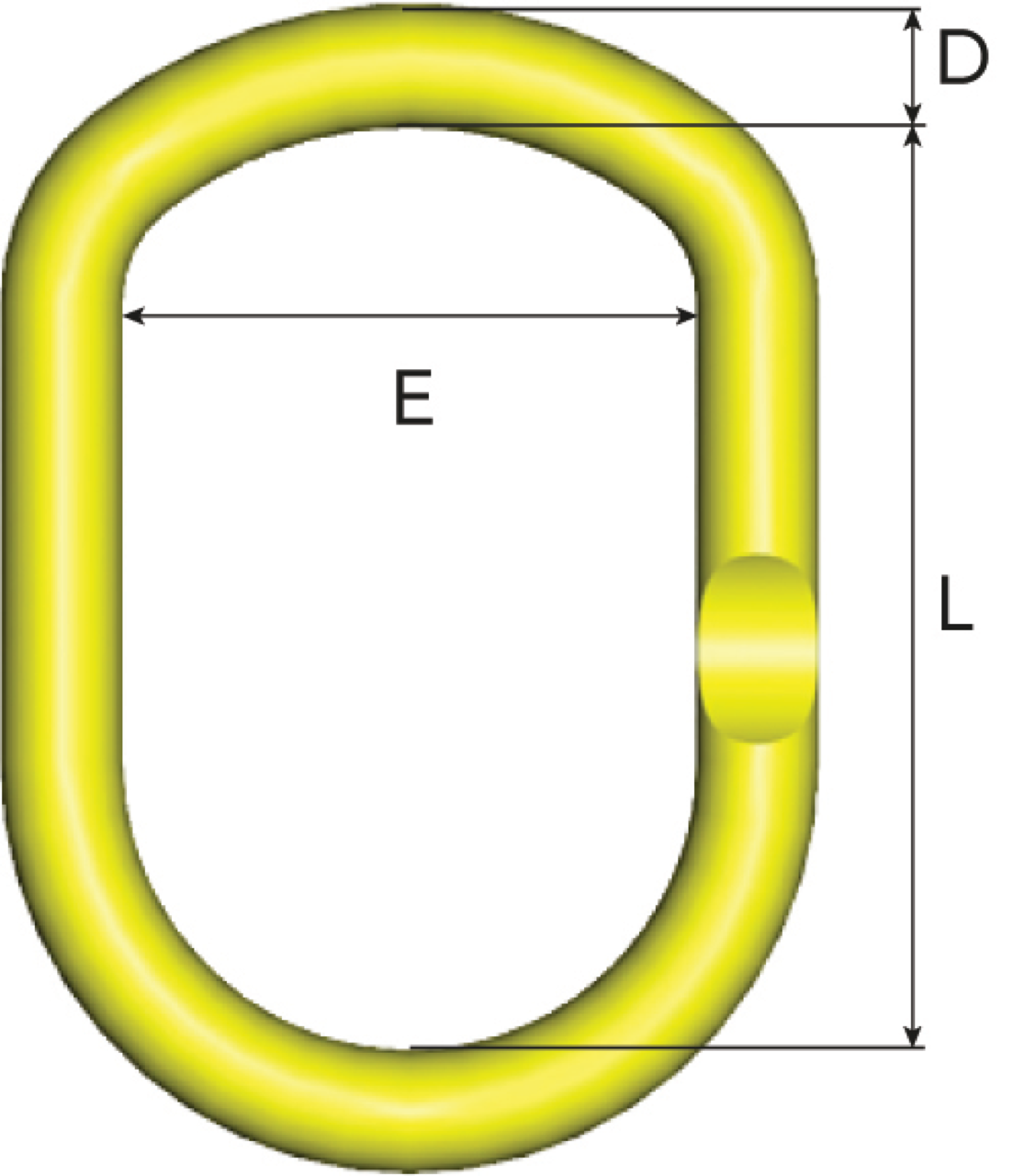

Part Code Code WLL
ton
Chain 1 leg Chain 2-leg Chain 3-4 leg For crane hooks L
mm
E
mm
D
mm
Weight
kg
NORA101310MFH MFH-1310-10 7.5 13 10 8 12 230 125 22 1.9
NORA101613MFH MFH-1613-10 10 16 13 10 12 250 135 28 3.2
NORA102016MFH MFH-2016-10 17 20 16 13 16 280 135 32 4.6
NORA102220MFH MFH-2020-10 28 26 20 16 25 320 175 40 8.6
NORA102220MFHW MFH-2220-10 28 26 20 16 50 355 225 40 9.9
