Gunnebo Industries

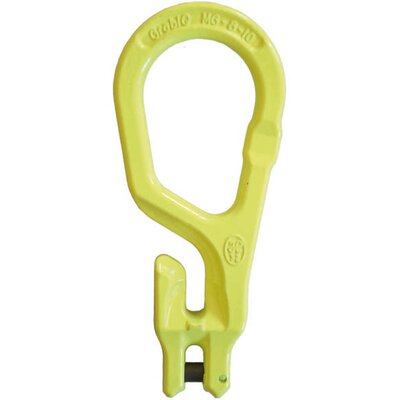

"All-in-one" compact top link.

  • Material: Quenched and tempered alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

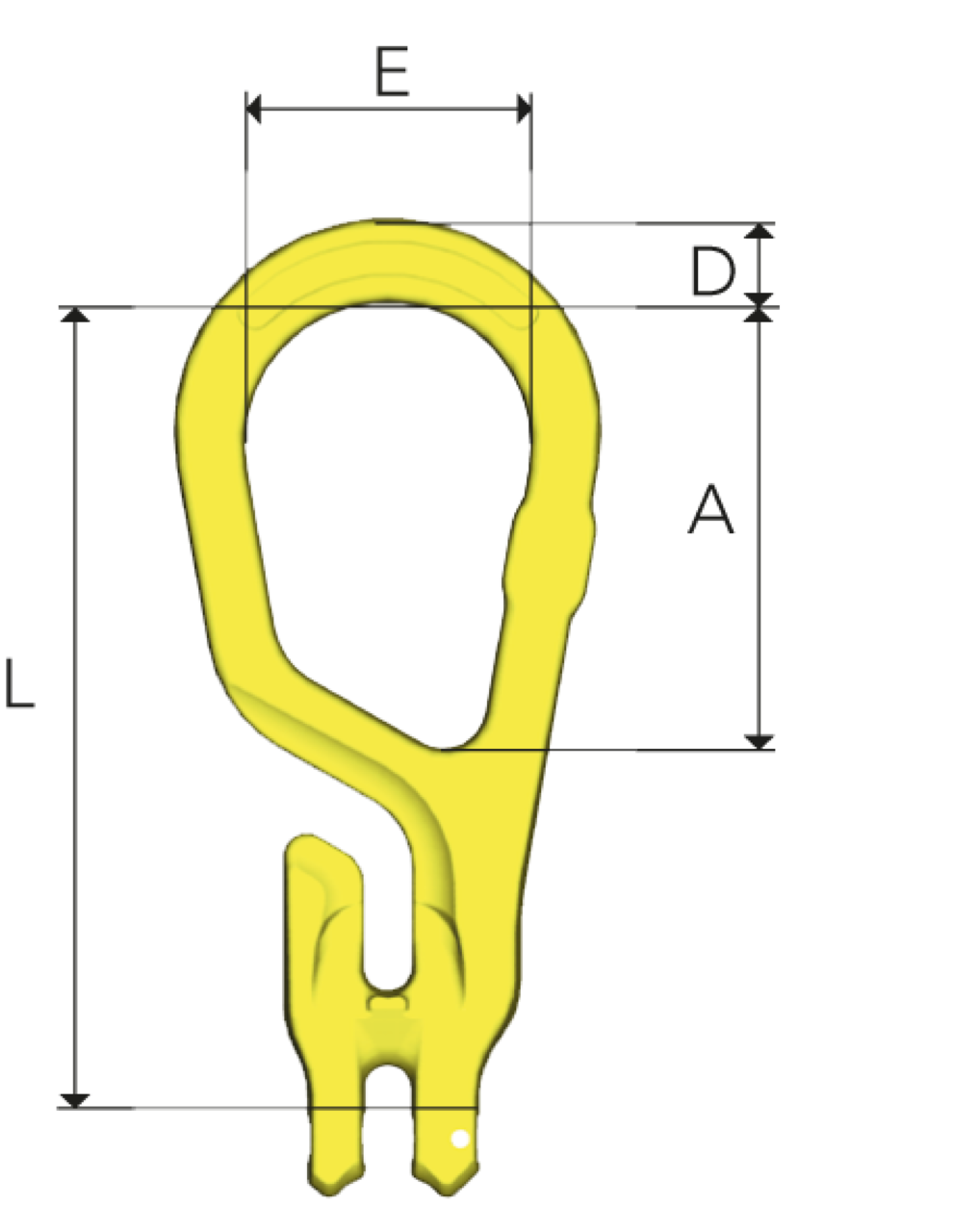

Part Code Code WLL
ton
L
mm
A
mm
E
mm
D
mm
Weight
kg
NORA1006MG MG-6-10 1.5 145 88 60 15 0.5
NORA1008MG MG-8-10 2.5 171 92 60 18 0.9
NORA1010MG MG-10-10 4 211 113 75 22 1.8
NORA1013MG MG-13-10 6.7 261 138 90 26 3.5
NORA1016MG MG-16-10 10 311 157 105 31 6.1
