Gunnebo Industries





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-1
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

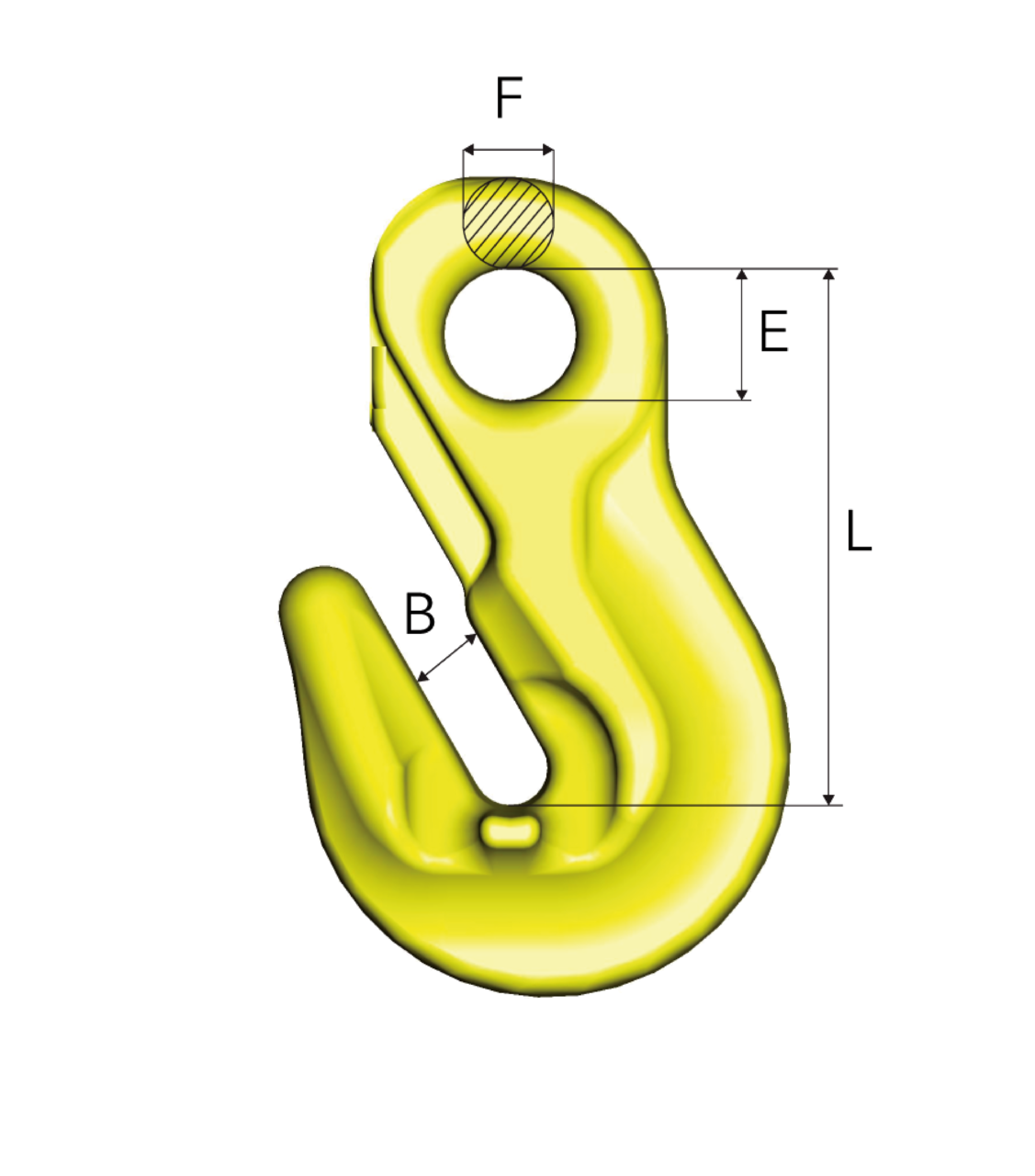

Part Code Code WLL
ton
L
mm
B
mm
E
mm
F
mm
Weight
kg
LYKA1078OG OG-7/8-10 2.5 65 10,5 17 12 0.3
LYKA1010OG OG-10-10 4 85 12 20 16 0.7
LYKA1013OG OG-13-10 6.7 104 16,2 26 22 1.6
LYKA1016OG OG-16-10 10 131 20 32 24 2.8
LYKA1020OG OG-20-10 16 167 26,4 41 28 6.1
LYKA1022OG OG-22-10 20 187 26 46 32 8.6
LYKA1026OG OG-26-10 27 228 32 55 38 14
LYKA1032OG OG-32-10 40 229 40 82 37 20.7
