Gunnebo Industries





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

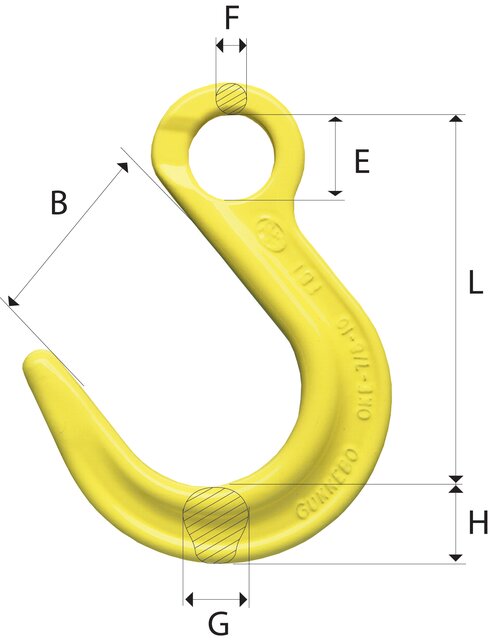

Part Code Code WLL
ton
L
mm
B
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
VAL1078OKE OKE-7/8-10 2.5 124 63 28 12 21 26 0.8
VAL1010OKE OKE-10-10 4 151 76 34 15 26 30 1.4
VAL1013OKE OKE-13-10 6.7 184 90 44 19 33 39 2.8
VAL1016OKE OKE-16-10 10 218 102 56 23 40 46 4.9
VAL1020OKE OKE-20-10 16 247 114 60 27 46 60 7.2
VAL1022OKE OKE-22-10 20 275 120 64 31 60 70 11.3
VAL1026OKE OKE-26-10 27 300 113 70 35 64 77 16
