Gunnebo Industries

For use with master link and Eye hook.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677
  • Warning: Not to be heat treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

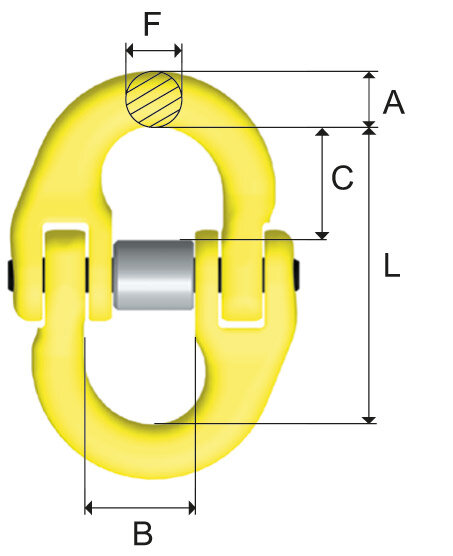

Part Code Code Chain diameter
mm
WLL
ton
L
mm
B
mm
F
mm
A
mm
C
mm
Weight
kg
LLA1006G G-6-10 6 1.5 45 15 7 8 16 0.09
LLA1007G G-7-10 7 2 56 18 9 11 22 0.161
LLA1008G G-8-10 8 2.6 56 18 9 11 22 0.17
LLA1010G G-10-10 10 4 68 25 12 13 26 0.336
LLA1013G G-13-10 13 6.8 89 29 15 17 33 0.759
LLA1016G G-16-10 16 10.3 106 36 19 20 40 1.366
LLA1020G G-20-10 20 16 125 43 23 26 44 2.727
LLA1022G G-22-10 22 20 152 50 26 28 59 3.6
LLA1026G G-26-10 26 27.3 161 58 32 34 61 5.7
LLA1032G G-32-10 32 40 200 70 38 40 77 9.5
