Gunnebo Industries

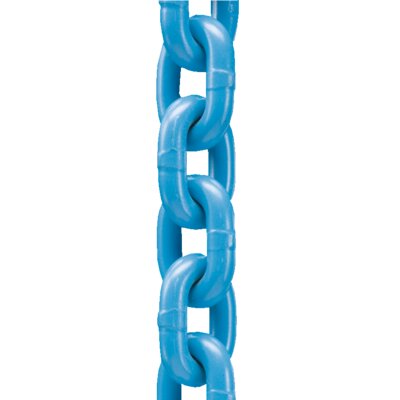

General: Chain for lifting. Has a maximum service temperature of 200°C.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, Code and grade.
  • Standard: EN 818-2
  • Warning: Not to be heat treated!
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

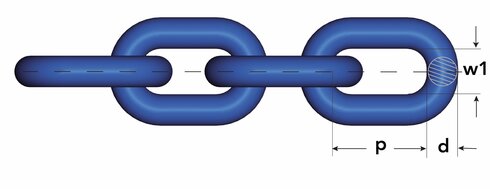

Part Code Code Diameter
mm
WLL
ton
Min. breaking force
kN
Length
m
P
mm
d
mm
w1
mm
Weight
kg
NK1006G KLA-6-10 6 1.5 58.9 1x200 18 6 8.5 0.8
NK1007G KLA-7-10 7 1.95 77 1x200 21 7 10 1.14
NK1008G KLA-8-10 8 2.6 102 1x200 24 8 10 1.4
NK1010G KLA-10-10 10 4 158 1x100 30 10 14 2.3
NK1013G KLA-13-10 13 6.8 268 1x100 39 13 17 3.8
NK1016G KLA-16-10 16 10.3 402 1x100 48 16 21 5.6
NK1020G KLA-20-10 20 16 630 1x50 60 20 27 9.4
NK1022G KLA-22-10 22 20 785 1x50 66 22 29 11.8
NK1026G KLA-26-10 26 27 1,062 1x50 78 26 35 14.6
