Gunnebo Industries

For use with master links.

  • Material: Quenched and tempered alloy steel.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

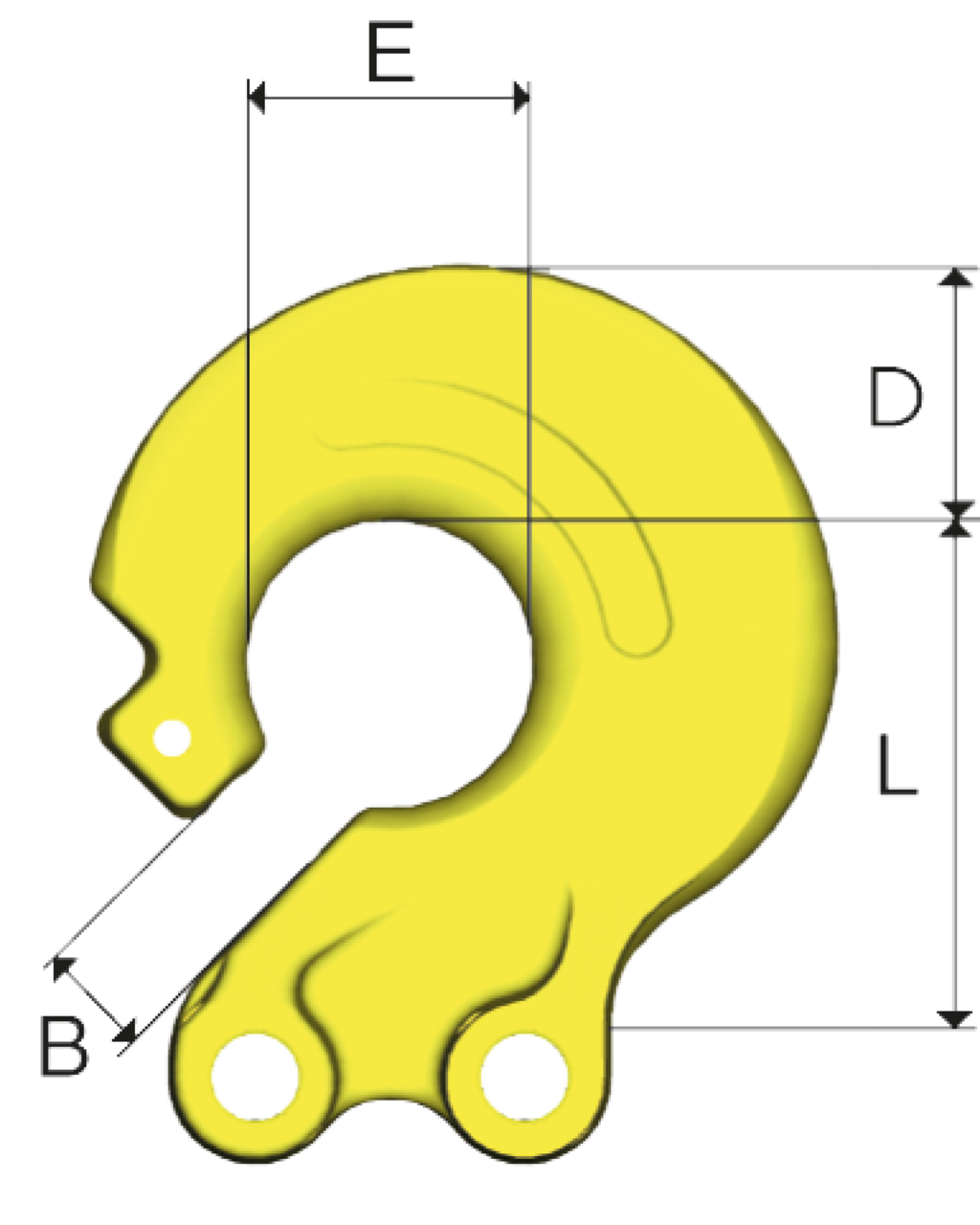

Part Code Code WLL
ton
L
mm
B
mm
E
mm
D
mm
Weight
kg
LLA1006CLD CLD-6-10 2.1 43 11 24 22 0.4
LLA1008CLD CLD-8-10 3.5 58 12 32 29 0.6
LLA1010CLD CLD-10-10 5.6 74 15 40 37 1.2
LLA1013CLD CLD-13-10 9.5 94 18 52 46 3.1
LLA1016CLD CLD-16-10 14 119 25 64 57 5.5
