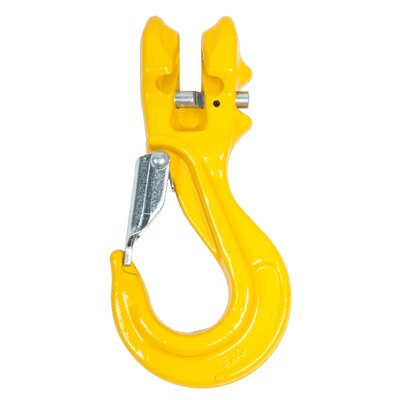

Haklift

Hook is equipped with spring loaded safety latch.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

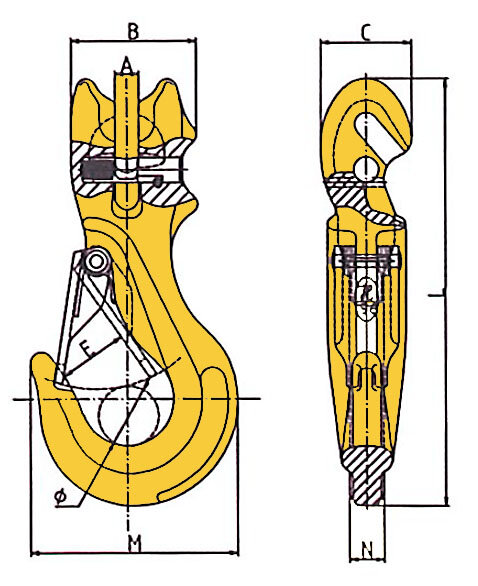

Part Code WLL
ton
For Chain Ø
mm
A
mm
B
mm
C
mm
E
mm
M
mm
N
mm
L
mm
Ø
mm
Weight
kg
SALKH6TK 1,12 6 8 40 29 20 66 11 136 17 0,5
SALKH78TK 2 7/8 10 45 33 27 84 13 172 27 0,9
SALKH10TK 3,15 10 12 56 42 33 103 11 215 34 1,7
SALKH13TK 5,3 13 15 75 57 40 133 20 258 45 3,4
SALKH16TK 8 16 18,5 82 72 44 156,7 26,5 305 56 5,57
