Haklift

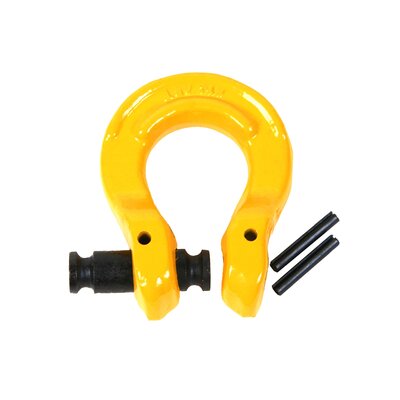

Omega connecting link is used for connecting short link grade 80 chains to different components in a lifting sling.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
For chain dia.
mm
T
mm
L
mm
D
mm
K
mm
P
mm
Weight
kg
OMEA78 2 7/8 51 68 23 35 10 0.22
OMEA10 3.15 10 62 81 31 40 12 0.36
OMEA13 5.3 13 80 108 41 54 15 0.71
OMEA16 8 16 98 126 49 64 19 1.3
