Haklift

Master link is equipped with integrated chain shortening system when shortening hooks is no needed. Master link can be removed from chain.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

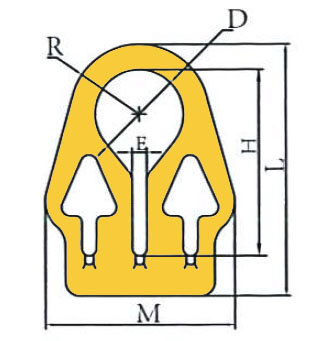

Part Code WLL
ton
For chain dia.
mm
E
mm
D
mm
R
mm
H
mm
M
mm
L
mm
Weight
kg
NOR8L 0.95 8 8 51 40 107 109 144 0.46
NOR10L 1.58 10 10 78 56 151 133 196 1.3
NOR13L 3.22 13 12 81 69 148 167 234 1.89
