Haklift

Due to the swivel the hook is easy to align into the wanted direction. The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

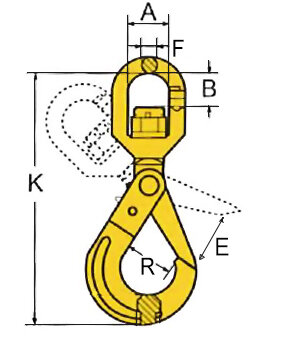

Part Code WLL
ton
For chain dia.
mm
K
mm
E
mm
B
mm
F
mm
R
mm
A
mm
Weight
kg
VAKL6 1.12 6 170 29 22 11 34 32 0.71
VAKL78 2 7/8 210 34 26 12 46 35 1.1
VAKL10 3.15 10 247 44 34 15 56 42 2
VAKL13 5.3 13 302 52 38 16 69 50 4
VAKL16 8 16 383 60 55 21 86 61 7.3
VAKL20 12.5 20 418 83 61 26 100 72 11.6
