Connecting link is used for connecting short link grade 80 chains to different components in a lifting sling.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

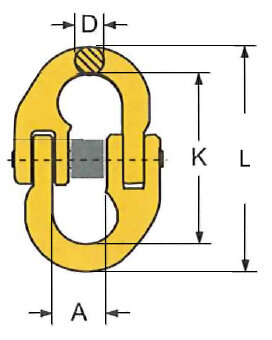

Part Code WLL
ton
For chain dia.
mm
L
mm
K
mm
A
mm
D
mm
Weight
kg
LL6 1.12 6 58 42 15 7 0.08
LL78 2 7/8 79 60 18 8 0.146
LL10 3.15 10 90 68 25 11 0.3
LL13 5.3 13 117 87 29 15 0.65
LL16 8 16 148 108 34 19 1.15
LL20 12.5 20 154 121 41 24 2.1
LL22 15 22 193 141 48 26 2.87
LL26 21.2 26 220 158 57 30 4.5
LL32 31.5 32 281 205 67 37 8.21
