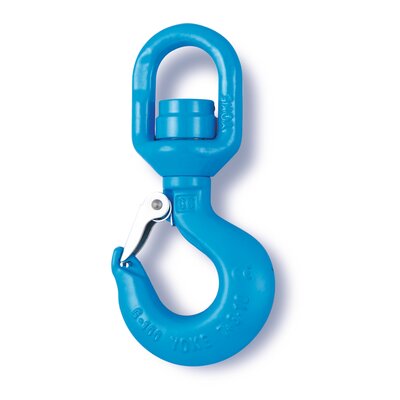

Built with ball bearing and enables full swivel feature under load. At least 25% greater WLL than traditional Grade 8 products. Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL. Magnaflux crack detection is performed 100% on each batch.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard
  • Temperature range: Tempering temperature minimum 400°C
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

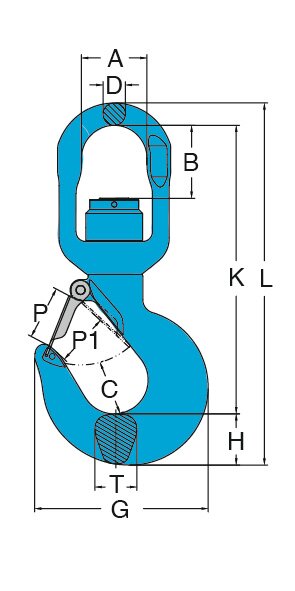

Part Code WLL
ton
Hook (*) code (*) For Grade 100 Chain
mm
A
mm
B
mm
C
mm
D
mm
G
mm
H
mm
K
mm
L
mm
P
mm
P1
mm
T
mm
Weight
kg
SALKAL1006KL 1,5 BB 6 32 23 25 12 80 21 126 158 24 19 18 0,7
SALKAL1078KL 2 CC 7,8 36 29 26 13 91 25 143 181 24 20 22 0,9
SALKAL1010KL 3 DD 10 41 35 29 16 102 29 172 217 28 25 24 1,6
SALKAL1013KL 5 EE 13 46 44 38 21 130 36 211 269 35 31 31 3,2
SALKAL1016KL 7 FF 16 61 51 49 23 166 46 258 328 43 39 42 5,7
SALKAL1020KL 11 GG 20 74 82 62 25 196 58 326 409 61 57 48 9,5
SALKAL1022KL 15 HH 22 97 96 65 33 221 64 372 471 72 62 56 16
