Haklift
  • Not for lifting

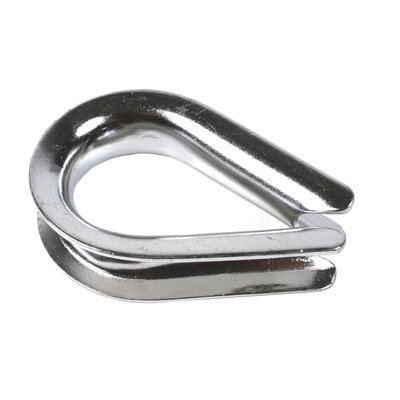

Thimbles for steel wire ropes.



  • Material: AISI 316
  • Finish: Polished
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
c
mm
f
mm
Weight
kg/100pc
KOH03 3 10 16 0,3
KOH04 4 11 17 0,41
KOH05 5 13 20 0,52
KOH06 6 16 25 0,9
KOH08 7–8 20 32 1,85
KOH10 9–10 26 40 3,35
KOH12 11–12 28 45 4,41
KOH14 13–14 34 56 9
KOH16 15-16 37 62 13
