Haklift
  • Not for lifting

Stainless steel long link chains packed in a bundle



  • Material: AISI 316
  • Finish: Polished
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button

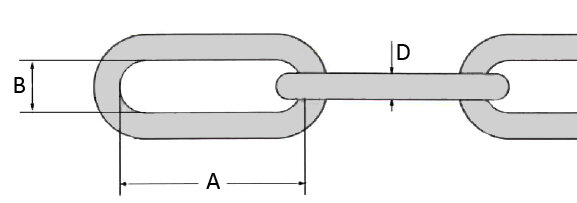

Part Code Chain diameter
mm
Approx breaking load
t
A
mm
B
mm
Weight
kg/m
KEHA2PH 2 0,13 22 4 0,06
KEHA3PH 3 0,28 26 5,5 0,15
KEHA4PH 4 0,6 32 8 0,27
KEHA5PH 5 1 36 10 0,43
KEHA6PH 6 1,4 42 12 0,63
KEHA8PH 8 2,5 54 16 1,1
KEHA10PH 10 4 66 20 1,75
KEHA13PH 13 6,4 82 24 2,95
KEHA16PH 16 9 100 32 4,45
