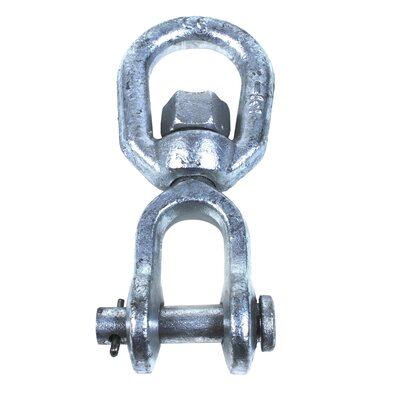

Haklift
  • Not for lifting

Rotating swivels with glinding surface.



  • Material: Steel
  • Finish: Electro galvanized
  • Warning: Not for lifting
    Select a row from the table below, then click the add to quote button

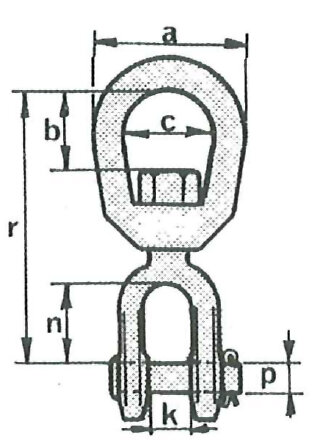

    Part Code Length
    mm
    Size
    mm
    Breaking Force
    kg
    a
    mm
    b
    mm
    c
    mm
    k
    mm
    n
    mm
    p r
    mm
    Weight
    kg
    LEISH0500 75 8 2 000 41 21 25 13 22 8 75 0,17
    LEISH1000 92 10 4 000 51 24 32 16 27 10 92 0,32
    LEISH1600 114 13 6 400 64 33 38 19 33 13 114 0,65
    LEISH2400 135 16 9 600 76 40 44 24 38 16 135 1,12
    LEISH3200 154 19 12 800 89 44 51 29 44 19 154 1,88
    LEISH4500 178 22 18 000 102 52 57 30 52 22 178 2,21
    LEISH5600 217 25 22 400 114 59 64 44 71 29 217 4,87
