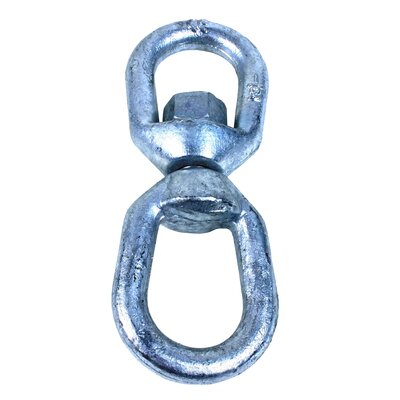

Haklift
  • Not for lifting

Rotating swivels with glinding surface.



  • Material: Steel
  • Finish: Electro galvanized
  • Warning: Not for lifting
    Select a row from the table below, then click the add to quote button

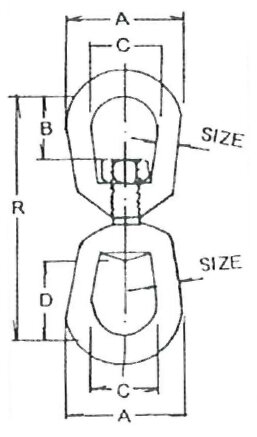

    Part Code Length
    mm
    Size
    mm
    Breaking Force
    kg
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    R
    mm
    Weight
    kg
    LEISS0500 90 8 2 000 41 21 25 32 90 0,18
    LEISS1000 110 10 4 000 51 24 32 38 110 0,31
    LEISS1600 138 13 6 400 64 33 38 51 138 0,65
    LEISS2360 167 16 9 600 76 40 44 60 167 1,08
    LEISS3200 183 19 12 800 89 44 51 67 183 1,79
    LEISS4500 213 22 18 000 102 52 57 78 213 2,8
    LEISS5600 245 25 22 400 114 59 64 89 245 4,06
