Haklift
  • Not for lifting

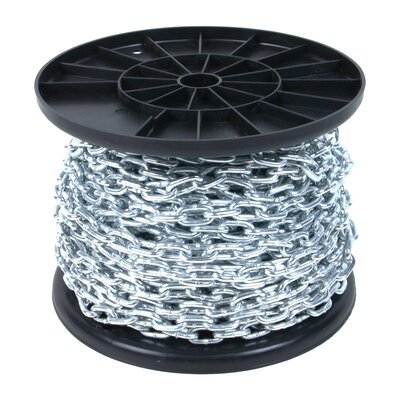

Electro galvanized short link chains packed in plastic reels



  • Material: Steel
  • Marking: According to standard
  • Finish: Electro galvanized
  • Standard: DIN 766
  • Warning: Not for lifting
  • Grade: 3
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
Length Approx. breaking strength
kg
A
mm
B
mm
Weight
kg/m
KELH03 3 50 300 16 6 0,17
KELH04 4 30 600 16 6 0,32
KELH05 5 30 1 000 18,5 7 0,5
KELH06 6 25 1 400 18,5 8 0,75
KELH08 8 15 2 500 24 10 1,35
KELH10 10 10 4 000 28 14 2,25
