Green Pin


Standard: generally to EN 13411-6

  • Material: high tensile steel
  • Temperature range: -20°C up to +200°C
  • Finish: hot dipped galvanized

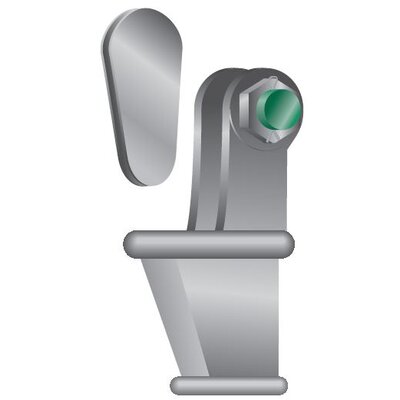

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

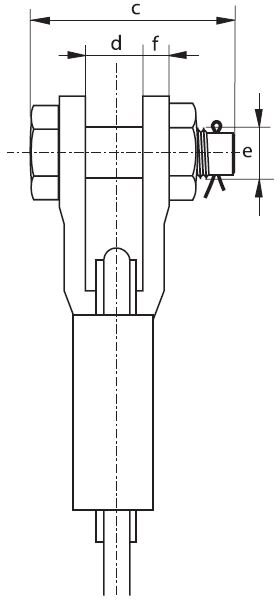

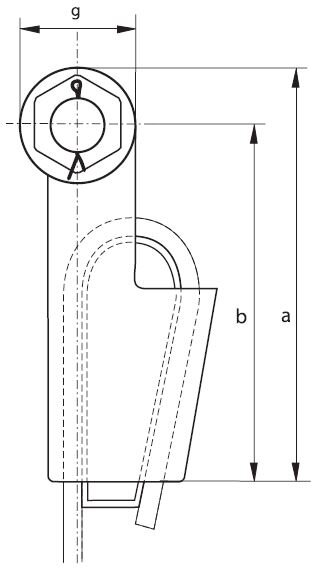

Part Code Rope diameter
mm
Finish Number width c
mm
diameter eye g
mm
diameter pin e
mm
MBL
ton
length to center pin b
mm
thickness side plates f
mm
length a width inside d Weight
kg
KII010 7-8 Galvanized 0,25 69 36 16 8 110 9 128 18 0,8
KII015 9-10 Galvanized 0,5 83 46 20 12 142 11 165 20,5 1,5
KII025 11-13 Galvanized 1 101 57 25 20 146 12 175 25 2,4
KII040 14-16 Galvanized 2 124 70 30 25 176 15 211 31 4,8
KII050 18-19 Galvanized 3 138 80 35 40 212 16 252 38 8,3
KII070 20-22 Galvanized 4 148 95 41 55 240 19 288 44 11
KII100 24-26 Galvanized 5 176 110 50 75 274 22 329 51 17,9
KII120 27-29 Galvanized 6 193 130 57 90 310 25 375 57 21
KII160 30-32 Galvanized 7 210 146 63 110 350 28 423 63 33
KII180 34-36 Galvanized 8 216 148 65 125 400 28 474 69 42
